High-Precision Car Light Mold Mirror Polishing Guide

I. Introduction: The Criticality of Surface Roughness

In the global automotive sector, the performance and aesthetic appeal of car lighting systems are paramount. For manufacturers of highly sophisticated car light injection molds, the mold's surface quality is not merely a cosmetic concern; it is the core determinant of the final lens's optical performance, safety, and durability. To understand our core capabilities, you can visit our Home Page.

This guide provides a deep technical analysis of how a world-class car light mold achieves its finish, covering the critical role of systematic sandpaper grit selection, rigorous polishing methodologies, and adherence to recognized roughness standards (Ra, Sa).

II. Core Concepts: Roughness, Standards, and Grit Selection

2.1 Defining Surface Roughness (Ra and Sa)

Surface roughness is the geometric parameter used to measure the micro-level texture and irregularities of a surface.

• Ra (Arithmetic Average Roughness): The most common standard, representing the arithmetic mean deviation of the surface profile from the center line. In high-precision optical molds, the Ra value must be extremely low.

• Sa (Areal Average Roughness): The three-dimensional (3D) equivalent of Ra. For complex lighting optics, Sa provides a more comprehensive and accurate description of the entire mold surface.

2.2 The Role of Sandpaper Grit and Roughness of Sandpaper

The process begins with the careful selection of abrasives. The sandpaper grit used in the pre-polishing stages directly dictates the initial micro-roughness.

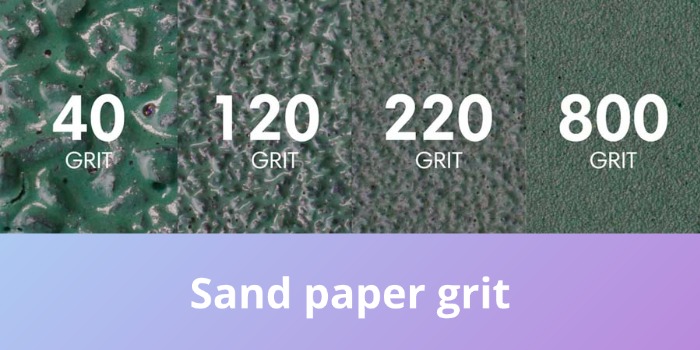

Figure 1: Visual comparison of micro-surface texture resulting from different sandpaper grit sizes.

Process Control: We adhere to a strict "No Grit-Skipping" policy. Every sequential sanding step must fully eliminate the deeper scratch patterns left by the previous, coarser grit to prevent defects from being exposed during the final polishing phase.

III. Adhering to International Roughness Standards (T2 Market Compliance)

Achieving a high-precision finish is critical for molds destined for the demanding European (T2) and North American (T1) automotive markets.

3.1 Mirror Finish Standards for Optical Molds

High-end car light lenses require a true mirror finish, often benchmarked against the highest SPI (Society of the Plastics Industry) grades.

Technical Execution: To meet these sub-micron standards, our facility integrates advanced technology, including ultrasonic polishing and specialized lapping with diamond compounds, carefully measured down to the nanometer level.

3.2 Quality Control (QC): Measurement and Verification

In high-stakes manufacturing, proof of precision is paramount. We guarantee compliance through meticulous verification:

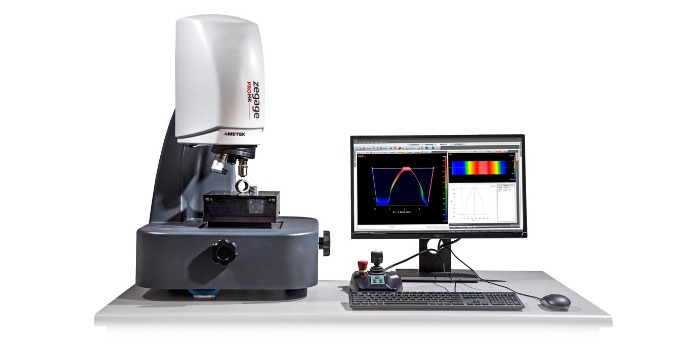

Figure 2: Using a non-contact 3D Optical Profilometer to verify Sa roughness in sub-micron range.

We use non-contact methods to measure the true Sa (3D roughness) value, enabling inspection for microscopic defects that could compromise optical performance. Every mold's polishing history is documented and verified against the customer’s specifications, ensuring compliance with global manufacturing protocols. For a deeper dive into overall surface standards, refer to The Engineer's Guide to Automotive Plastic Surface Finishes.

IV. Process Pitfalls and Guangdian's Solutions (Expert Experience)

Our decades of experience in automotive lighting mold manufacturing have taught us to proactively mitigate common polishing risks.

4.1 Challenge 1: Eliminating the Orange Peel Effect

The "Orange Peel Effect" is a common, often disastrous, surface imperfection caused by inconsistent material removal or excessive heat during high-speed polishing.

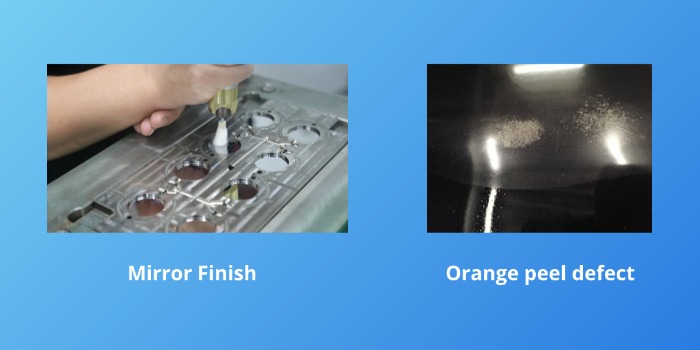

Figure 3: Microscopic comparison of a flawless surface (left) versus the "Orange Peel Effect" defect (right).

4.2 Challenge 2: Pinholes and Sub-Surface Defects

Microscopic pinholes or porosity in the steel become visible only at the final mirror-finish stage, potentially ruining the part.

Our design approach allows for the development of highly accurate and durable molds. Learn more about our specialized Custom Mold Design services.

V. Conclusion: Your Partner in Precision Optics

Achieving a flawless mirror finish for car light molds requires an integrated strategy encompassing rigorous standards adherence, systematic grit control, and expert defect management.

At Guangdian Technology, precision is our hallmark. We manage the entire spectrum of surface roughness control, ensuring your high-value molds meet the demanding requirements of the global automotive market.

To explore our specialized products, view our High-quality Precision Injection Mold for Automotive Headlight Covers.
