In the production of auto lamp molds, polishing plays a vital role in achieving the level of optical clarity and surface quality demanded by today’s automotive standards. As vehicle lighting becomes more advanced and design-focused, manufacturers require molds that produce parts with high transparency, precise geometry, and flawless surface finishes.
For any automotive mold manufacturer, polishing is no longer just a finishing step—it’s a defining factor in mold performance and customer satisfaction. From headlamp lenses to tail light housings, a well-polished mold directly impacts light transmission, product consistency, and the visual appeal of exterior components.
This article offers a practical look into the polishing techniques widely adopted in the automotive injection mold industry. Whether you are a seasoned auto lamp mold manufacturer or a new supplier aiming to meet global quality benchmarks, refining your polishing process can result in more durable tools and visually flawless parts.
The choice of polishing method depends on the mold material, geometry, and required surface quality. Below is a simplified comparison of key polishing techniques:
| Method | Advantages | Limitations |
|---|---|---|
| Mechanical | Versatile, widely used | Labor-intensive, skill dependent |
| Chemical | Uniform finish in deep cavities | Lower precision, chemical handling |
| Electropolishing | High gloss, corrosion resistant | Requires controlled electrical setup |
Polishing methods vary depending on the material, required finish, and mold geometry. The most common approaches include:

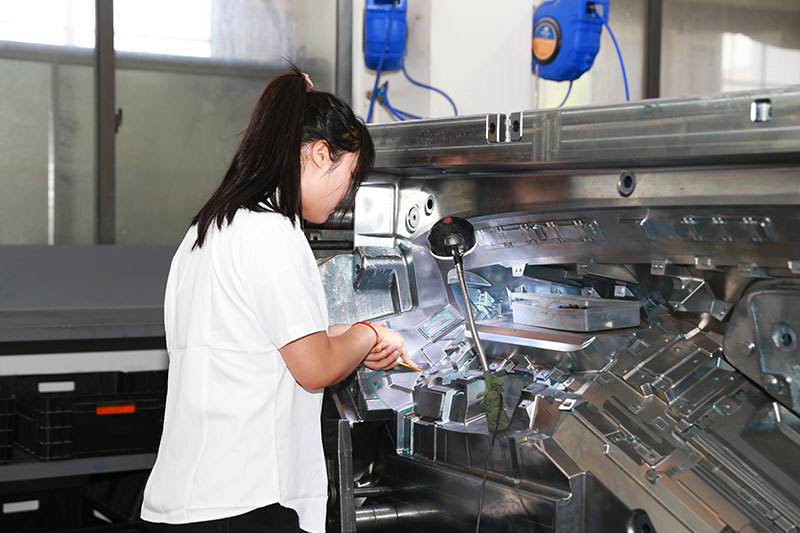

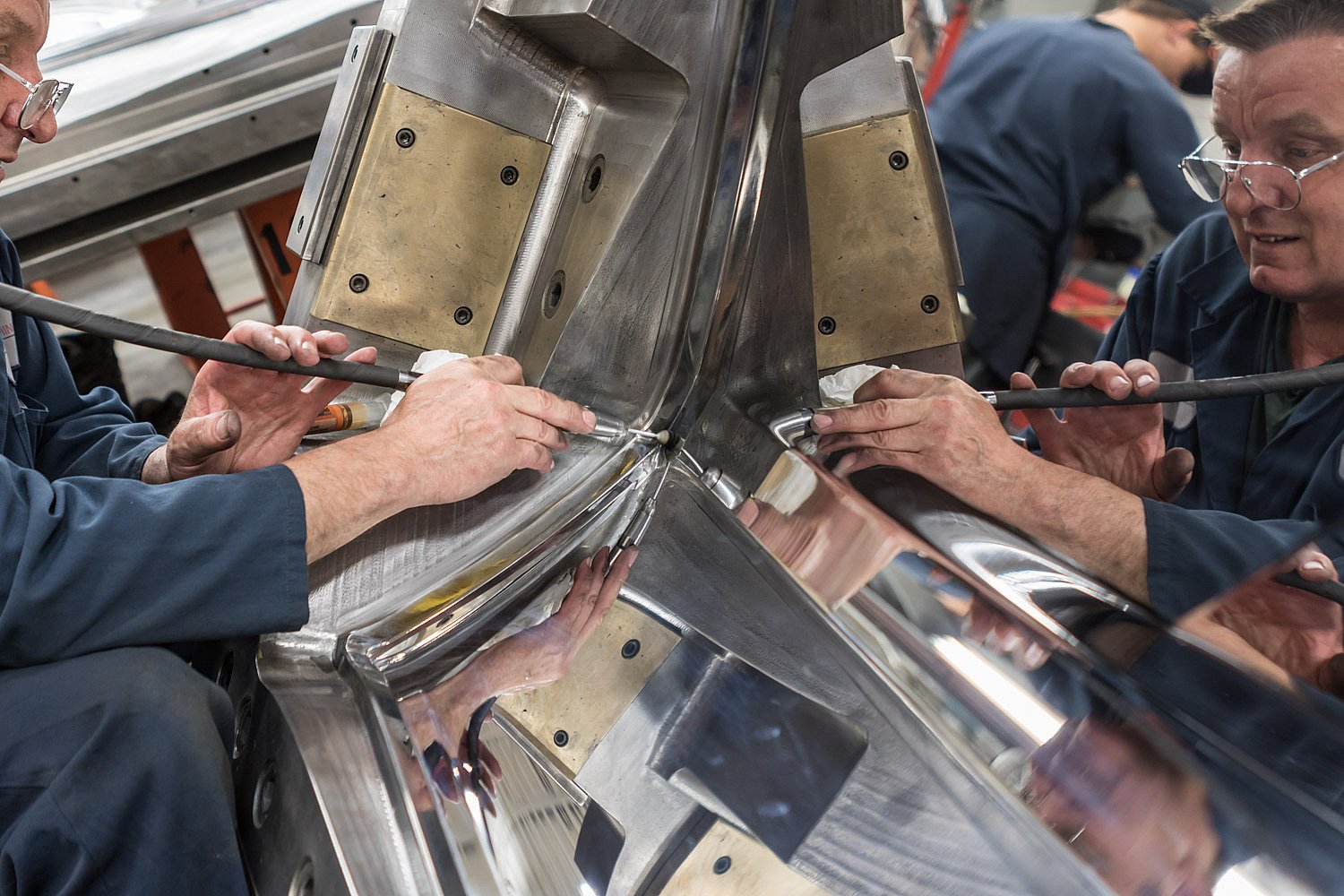

Mechanical polishing is the most common technique used in polishing auto lamp molds. It involves using abrasive materials like oilstones, sandpaper, or diamond paste to smooth out uneven areas on the mold surface. When done with care and precision, this method can produce a mirror-like finish with surface roughness as low as Ra 0.008 μm. This high-quality finish is especially important for headlamp molds, where clarity and reflection control are critical.

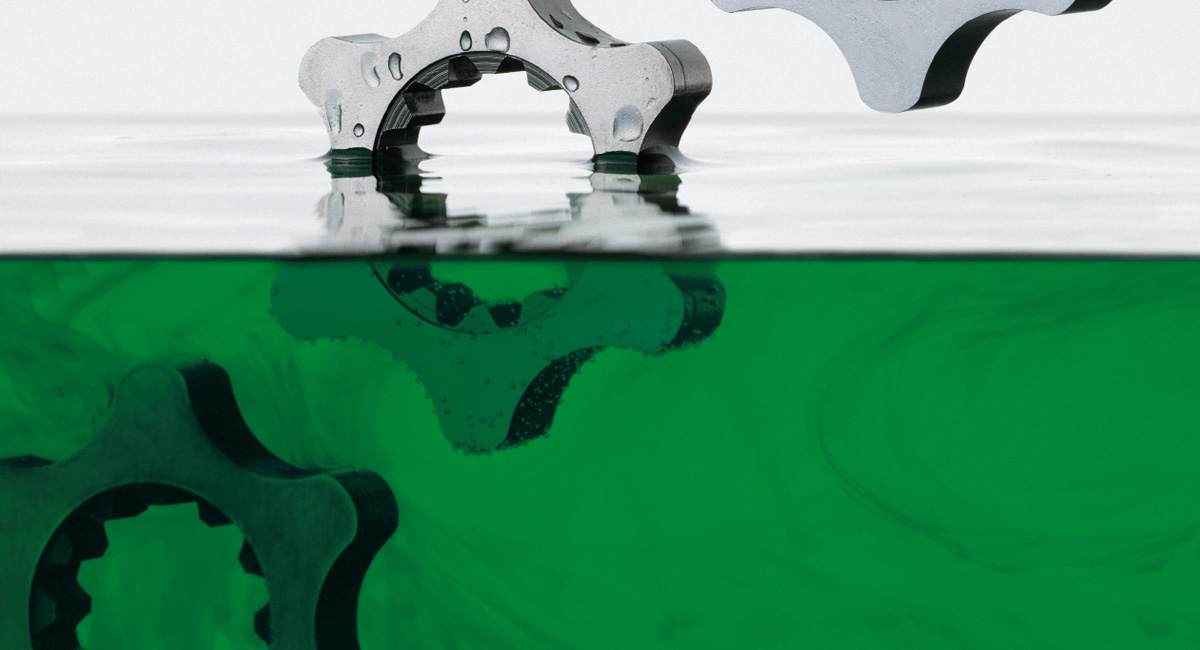

This method works by using a chemical solution to slowly dissolve the raised areas on the surface of the mold, making it smoother over time. Though efficient for parts with complex shapes, it typically offers lower precision than mechanical methods and is less common in automotive injection mold manufacturing.
Ultrasonic polishing uses high-frequency vibrations transmitted through a tool to drive abrasive particles suspended in a liquid medium. This method is especially useful for fine details, corners, or hard-to-reach areas of the mold, allowing for controlled material removal without introducing distortion or scratches.
EDM-assisted polishing refers to the combination of Electrical Discharge Machining (EDM) with subsequent polishing to remove the recast layer and surface irregularities left by EDM. This process is often applied in rough-machined cavities of auto lamp molds before mechanical or ultrasonic finishing.
Electropolishing uses an electrochemical process to dissolve surface micro-roughness, creating a clean, corrosion-resistant, mirror-like finish. It is especially effective for stainless steel and can complement mechanical polishing in automotive lighting mold applications. with subsequent polishing to remove the recast layer and surface irregularities left by EDM. This process is often applied in rough-machined cavities of auto lamp molds before mechanical or ultrasonic finishing.
Magnetic abrasive polishing uses magnetic fields to control abrasive particles that interact with the mold surface. It offers high efficiency, consistent pressure, and excellent control, making it ideal for achieving surface roughness values as low as Ra 0.1 μm. It is particularly suitable for complex shapes and hard materials used in automotive lighting molds.
Fluid polishing, also known as abrasive jet polishing or hydrodynamic grinding, involves high-speed fluid mixed with fine abrasives being directed at the mold surface. It is especially effective for smoothing intricate geometries without tool contact, reducing risk of deformation. This technique is suitable for polishing tight internal cavities and complex optical features.
Professional mold manufacturers rely on a range of specialized tools to achieve consistent and defect-free mirror finishes:

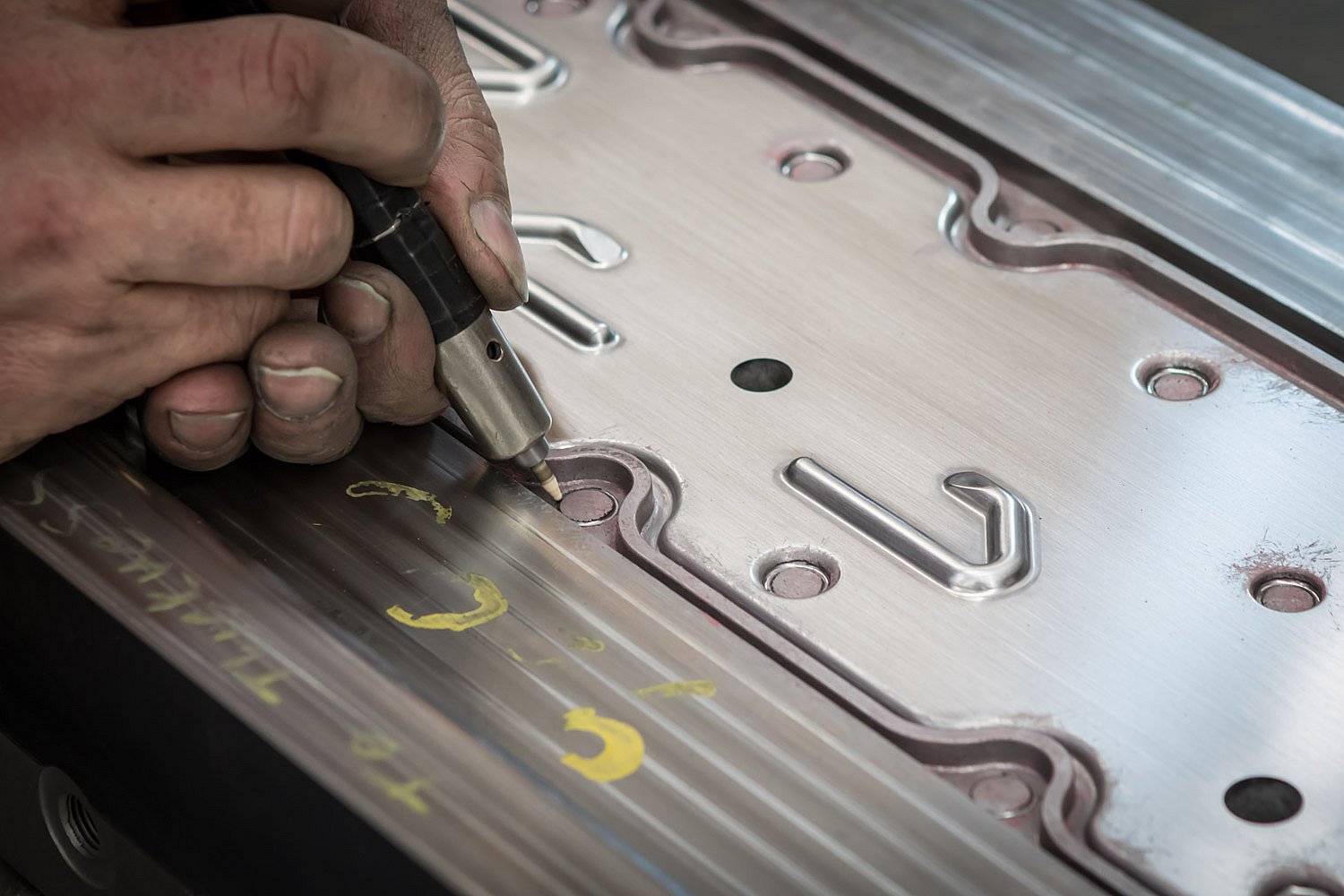

Rotary Polishers: For rapid, uniform surface treatment

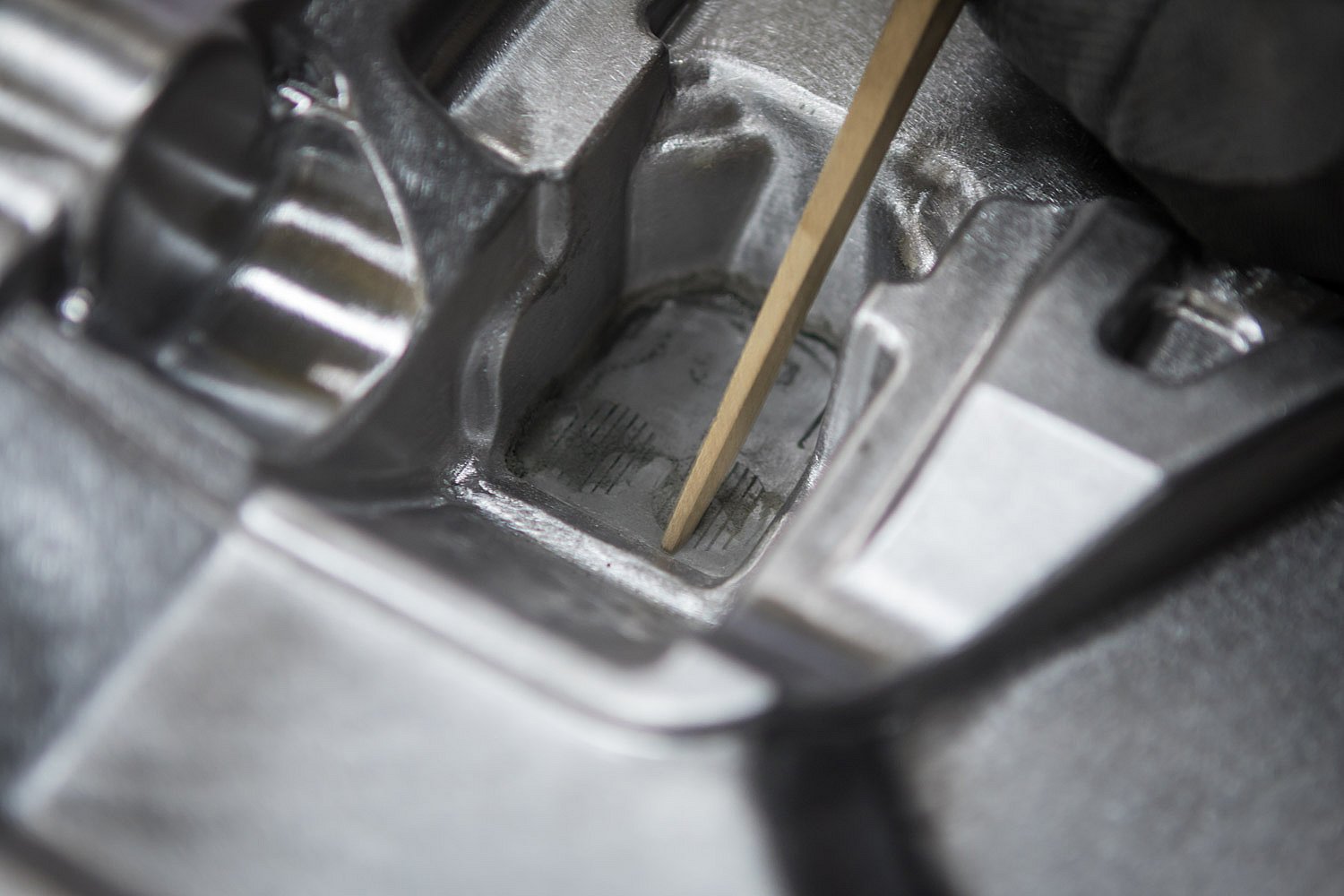

Bamboo Sticks: Used with fine abrasives for precision polishing in small or delicate areas
Oilstones: For shaping and removing machining marks during initial stages
Each tool serves a specific role in the polishing workflow and must be chosen based on mold geometry and required finish.
The effectiveness of polishing also depends on the quality and gradation of abrasive materials:
Abrasive Papers: Available in grit sizes from 150# to 1500# for gradual refinement
Diamond Paste: Ranges from 35 μm down to 0.25 μm for ultra-fine mirror polishing applications
Using the correct materials in combination with proper tools ensures the high-gloss results demanded in auto lamp moulds.
A structured polishing process ensures repeatable, defect-free results in lighting molds:
Performed after milling or EDM, rough polishing begins with oilstones or coarse abrasive papers (180# to 800#). Kerosene or polishing oil is used as a lubricant to prevent overheating or surface burning.
Using abrasive papers from 800# to 1500#, this step removes remaining tool marks and prepares the mold surface for final polishing. It’s crucial to avoid introducing new scratches, especially on hardened steel used in auto lamp molds.
Mirror polishing uses diamond paste in descending grit sizes—starting at 9 μm and progressing down to 0.25 μm. This stage defines the final optical clarity of the part and must be performed in a clean, dust-free environment.
Understanding SPI (Society of the Plastics Industry) and VDI (German Engineering Federation) standards helps define expected mold finishes for optical and technical components. For example, SPI A‑1 (Ra 0.012–0.025 µm) is ideal for headlamp lens molds requiring ultra-smooth surfaces, while VDI 12–18 corresponds to fine matte textures suitable for non-optical interior parts.
| Standard | Finish Type | Ra (μm) | Application Example |
| SPI A-1 | Grade #3 Diamond Buff | 0.012–0.025 | Optical lens molds (headlamps) |
| SPI B-2 | 600 Grit Paper | 0.05–0.10 | Interior trim |
| VDI 12 | Fine matte | ~0.4 | Control panels, logos |
Dust, moisture, or human contaminants can ruin a high-gloss mold surface. Therefore, final polishing of auto lamp moulds should occur in cleanroom conditions. After polishing, the mold should be cleaned thoroughly and coated with anti-rust oil to prevent surface oxidation.
Polished mold surfaces can sometimes exhibit imperfections that affect product appearance and functionality. These defects typically result from issues in technique, materials, or environmental factors during polishing. Recognizing these common surface flaws is essential for any automotive mold manufacturer focused on quality control.
Even experienced mold makers encounter polishing issues. Two of the most common problems are:
Occurs from excessive polishing time or heat buildup, particularly when using buffing wheels. It results in uneven reflection and compromises the optical performance of headlamp molds.
Solution: Reduce polishing pressure, use finer abrasives, and apply thermal stress relief before repolishing.
Caused by non-metallic inclusions or poor steel purity. These microscopic pits scatter light and impair lens clarity.
Solution: Use higher-quality mold steel and shorten polishing cycles with light, consistent pressure.
For any automotive mold manufacturer, especially those focusing on lighting systems, mastering injection mold polishing is a strategic advantage. A well-polished auto lamp mold ensures superior optical transmission, better part release, and extended tool life.
By standardizing polishing workflows and selecting the right tools and environment, manufacturers can meet increasing demands for high-performance, visually flawless automotive components.
