Automotive engineers face a massive mandate: cut vehicle weight without compromising structural integrity. Electrification and strict emission standards force this shift across the industry. When you reduce mass, you directly improve vehicle dynamics. Handling gets sharper. Acceleration improves. Braking distances shrink. But designing thinner, lighter plastic components brings severe manufacturing risks to the shop floor. We consistently see warpage, structural failure, and high scrap rates during high-volume production runs when using inadequate tooling.

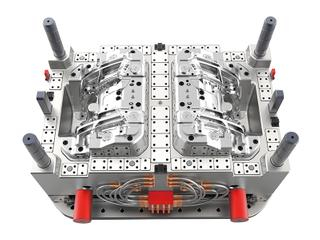

Standard tooling simply fails here. It cannot handle the complex geometries, embedded electronics, and advanced polymers required for modern lightweighting. High-viscosity resins freeze prematurely in standard thin-wall cavities. This causes short shots and weak points. Achieving structural integrity at a reduced weight is fundamentally a tooling challenge. You need a purpose-built precision automotive injection mold. This guarantees dimensional stability, tight tolerances, and repeatable quality at scale.
Lightweight automotive parts must meet strict safety, crash-test, and NVH (Noise, Vibration, and Harshness) standards despite their reduced mass. When engineers remove heavy metal brackets and structural supports, the replacement plastics must absorb impact energy and dampen resonant frequencies. Standard molding fails because it cannot hold the micro-tolerances required across variable wall thicknesses. If a structural rib on a glass-filled nylon bracket is molded even 0.1mm out of specification, it compromises the part's load-bearing capacity. It will fail to mitigate engine vibration. High-accuracy tooling ensures every geometric feature designed for crash energy dissipation is replicated perfectly across millions of cycles.
We see this threshold clearly in under-hood applications. Components like intake manifolds and engine covers use engineered resins such as PA66+GF30 (polyamide with 30% glass fiber). These materials require extreme injection pressures. If the mold base lacks absolute rigidity, the core will deflect during injection. Core deflection leads to uneven wall thicknesses, creating weak points that rupture under thermal cycling and mechanical stress.
Precision molding replaces restrictive metal stamping processes. Stamped metals limit engineers to uniform thicknesses and simple bends. Advanced injection molding allows engineers to design complex, organic geometries that optimize strength-to-weight ratios. By integrating mounting bosses, snap-fits, and structural ribbing into a single mold cavity, engineers can consolidate multiple sub-components into unified automotive plastic components.
Consider a modern front-end module carrier. In the past, this assembly required over a dozen stamped steel pieces welded and bolted together. Today, precision tooling allows us to mold the entire carrier as a single composite piece. This consolidation eliminates the need for heavy steel bolts, rivets, and secondary adhesives. It drives down the overall vehicle weight while streamlining the assembly line. The mold must feature complex slide mechanisms, lifters, and collapsible cores to release these intricate undercuts without damaging the part upon ejection.
Injecting high-viscosity advanced polymers into thin-wall cavities presents severe physical challenges. As wall thickness decreases to save weight, the cavity pressure required to fill the mold increases exponentially. Pressures frequently exceed 20,000 PSI. Standard molds experience core deflection under these extreme pressures, resulting in flash and dimensional failure.
Furthermore, molten polymer cools rapidly in thin sections. Without uniform cooling channels and exact gate placement, the material freezes before the cavity is fully packed. This premature freezing creates high internal shear stress. Precision tooling utilizes highly engineered hot runner systems with valve gates to control the melt flow precisely. We machine conformal cooling channels directly into the mold inserts to maintain optimal melt temperatures, preventing premature freezing and internal stress accumulation.
Automotive components operate in extreme environments. Under-hood parts endure intense heat cycling, often exceeding 120°C, while interior components face constant UV exposure and vibration. Precision tooling ensures parts maintain their exact dimensions when exposed to these operational stresses. This is particularly critical when the plastic component must support heavy internal electronics, LiDAR sensors, or infotainment displays.
If the mold lacks the rigidity to pack the polymer densely, the resulting part will suffer from anisotropic shrinkage. The polymer chains and glass fibers will align poorly, causing the part to warp over time. Dimensional creep sets in. This causes squeaks, rattles, and eventual mechanical failure in the field. We combat this by engineering molds with massive support pillars and interlocking guide pins to guarantee zero shift during the packing phase.
Modern lightweighting frequently requires combining different material properties into a single component. A two-shot injection mold eliminates the need for secondary assembly by injecting a rigid structural substrate and a soft-touch thermoplastic elastomer (TPE) in the same machine cycle. This process utilizes a rotary platen or core-back technology to create seamless chemical bonds between materials. It produces integrated weather seals, vibration dampeners, and ergonomic grips without added adhesives.
Insert molding plays an equally critical role on the shop floor. It allows manufacturers to embed essential metal threads, structural reinforcements, or electronic sensors directly into lightweight plastics. Instead of using bulky threaded fasteners, engineers can mold thin brass or stainless steel inserts directly into the polymer matrix. The mold must be equipped with precise locating pins and vacuum systems to hold these inserts perfectly in place against the massive surge of molten plastic. The weight-saving benefits of part consolidation heavily outweigh the initial engineering complexity.
Gas-assisted injection molding is a highly specialized technique used to create hollow channels within thick part sections. During the injection cycle, a controlled volume of inert nitrogen gas is introduced into the molten polymer. The gas displaces the plastic in the center of the cavity, pushing it outward against the mold walls.
This technique drastically reduces material usage and overall part weight. More importantly, it increases the part's structural rigidity. The hollow, tube-like structures created by the gas act similarly to a metal roll cage, offering superior torsional stiffness compared to solid plastic. Additionally, the internal gas pressure packs the polymer tightly against the mold surface as it cools. This effectively eliminates sink marks on thick aesthetic components like door handles, interior grab bars, and structural seat frames.
Interior aesthetics demand absolute perfection. An automotive trim mold requires Class-A surface finishes, invisible parting lines, and flawless fitment. Micro-molding techniques are utilized to create intricate textures, brushed metal appearances, and seamless integrations with modern interior electronics.
As vehicles incorporate more touch panels, capacitive switches, and digital displays, the surrounding trim must hold micro-tolerances to prevent light bleed and ensure tactile feedback. The mold cavity must be machined using high-speed 5-axis milling and fine-wire EDM to achieve the required surface finish. We polish these cavities using diamond paste to achieve an SPI A-1 finish. Any deviation or microscopic scratch in the mold surface will transfer directly to the highly visible trim component, resulting in immediate quality rejections on the assembly line.
In high-volume automotive production, success is measured by statistical process control. Manufacturers rely on Cpk (Process Capability Index) values to ensure every part falls within strict tolerance limits over millions of cycles. A Cpk value of 1.67 or higher is typically mandatory for automotive safety components. Achieving this requires a robust precision injection mold built from high-grade tool steel.
Soft steels succumb to thermal fatigue and abrasive wear. Engineers must specify premium metallurgy like 1.2344 (H13) hardened to 50-52 HRC for the core and cavity blocks to resist thermal shock. For components using off-gassing polymers like PVC or flame-retardant additives, we use 1.2083 (S136) stainless steel for superior corrosion resistance. The structural integrity of the mold base directly dictates its ability to resist clamp tonnage deflection, ensuring consistent wall thicknesses from the first shot to the one-millionth.
Precision molds must be engineered to accommodate the specific rheological behaviors and shrink rates of advanced lightweighting materials. Glass-filled nylons, carbon-fiber reinforced plastics (CFRP), and engineered polypropylene blends do not shrink uniformly. The orientation of the glass or carbon fibers during injection causes anisotropic shrinkage. The part shrinks differently along the direction of flow compared to the transverse direction.
If the mold designer does not accurately calculate these variable shrink rates, the resulting lightweight automotive parts will warp severely upon ejection. Tooling engineers must manipulate gate locations, flow lengths, and cooling layouts to control fiber orientation. We often use sequential valve gating to steer the melt front, ensuring the final part matches the nominal CAD geometry perfectly without bowing or twisting.
Evaluating the operational impact of tooling reveals stark differences in manufacturing efficiency. Precision tooling directly influences cycle times, scrap rates, and raw material utilization on the production floor.
| Manufacturing Metric | Standard Tooling Impact | Precision Tooling Impact |
|---|---|---|
| Cycle Time | Longer cooling phases due to inefficient, straight-line drilled water channels. | Rapid, uniform cooling via 3D conformal channels reduces cycle time by up to 30%. |
| Scrap Rate | High rejection rates from warpage, flash, and dimensional instability. | Near-zero defects due to precise thermal control and rigid mold construction. |
| Material Waste | Large, inefficient cold runner systems consume excess resin and require regrinding. | Optimized hot runner systems eliminate runner waste and reduce virgin resin consumption. |
| Maintenance Downtime | Frequent stops to clean vents, remove flash, and repair worn parting lines. | Extended production runs with minimal intervention due to hardened steel and tight tolerances. |
The most prominent risk in molding thin-wall lightweight parts is severe warpage. Uneven cooling rates across complex geometries cause internal stresses. When the part is ejected, these stresses release, twisting the component out of tolerance. A warped structural bracket cannot be assembled into the vehicle chassis.
We mitigate this by mandating comprehensive Mold Flow Analysis (MFA) during the Design for Manufacturability (DFM) phase. MFA software simulates the injection process, predicting fill patterns, shear rates, and volumetric shrinkage. Engineers identify potential air traps, optimize gate locations, and balance the cooling layout before cutting any steel. This proactive simulation prevents tooling modifications downstream.
Injecting abrasive materials like glass-filled nylon under high pressure acts like liquid sandpaper on the mold cavity. Over time, gate areas erode, venting channels clog, and the tool degrades. This leads to unplanned production downtime and part failure.
We implement strict predictive maintenance schedules to combat wear. We require the use of conformal cooling channels manufactured using Direct Metal Laser Sintering (DMLS). Conformal cooling wraps the water lines around the complex contours of the part, reducing thermal stress on both the polymer and the tool steel. Additionally, we specify replaceable tungsten carbide inserts at high-wear areas like gates and sharp corners to extend the tool's life.
Flash occurs when molten plastic escapes the cavity and flows across the parting line. In lightweight components, especially those utilizing snap-fits or interlocking tabs, even 0.05mm of flash can cause complete fitment failure on the assembly line. Flash also creates sharp edges that pose safety risks during manual assembly.
We specify micro-tolerance machining for all mold mating surfaces. The parting lines must be spotted perfectly to ensure zero-flash production. This requires utilizing high-end CNC equipment and verifying the mold's shut-off surfaces under high-tonnage spotting presses. We apply blue spotting ink to the core and close the mold under pressure to ensure 100% contact across the entire parting line before production begins.
Overmolding delicate electronic sensors or thin metal inserts introduces the risk of wire sweep or component crushing. The high velocity and pressure of the incoming melt front can easily crush a sensor, bend a metal pin, or snap delicate wiring inside the cavity.
We utilize highly controlled gate designs and precision low-pressure injection profiles. Valve-gated hot runner systems allow engineers to sequence the flow of plastic, gently enveloping the insert rather than blasting it with high-pressure resin. The mold must also feature precise locating pins or active vacuum systems to hold the insert rigidly in place during the injection cycle.
Automotive OEMs operate under the strictest quality requirements in the manufacturing sector. You cannot partner with a vendor lacking proper certifications. Verify that the plastic mold manufacturer holds active IATF 16949 and ISO 9001 certifications. IATF 16949 ensures the vendor complies with automotive-specific standards for defect prevention, continuous improvement, and supply chain traceability. It mandates rigorous methodologies like Advanced Product Quality Planning (APQP) and Failure Mode and Effects Analysis (FMEA), which are non-negotiable for safety-critical lightweight components.
Fragmented supply chains introduce risk. Assess the vendor's ability to handle end-to-end production under one roof. A competent manufacturer must offer comprehensive DFM engineering, rapid prototyping, and in-house tool building. Furthermore, they must possess the capability to execute the Production Part Approval Process (PPAP). We look for vendors who can execute the following validation steps internally:
You cannot build a high-precision mold with outdated equipment. Evaluate the manufacturer's shop floor infrastructure. Look for 5-axis CNC machining centers capable of cutting complex organic geometries without requiring multiple setups. Verify their use of fine-wire Electrical Discharge Machining (EDM) for sharp internal corners and specialized surface finishes. Finally, ensure they utilize automated Coordinate Measuring Machines (CMM) to inspect the finished mold components and validate dimensional accuracy down to the micron level.
Lightweighting initiatives succeed or fail based on the quality of the tooling. A precision automotive injection mold is a critical engineering asset that dictates the viability, safety, and performance of modern automotive plastic components. Standard molds simply cannot navigate the complex rheology of advanced polymers, the thermal demands of thin-wall designs, or the micro-tolerances required for part consolidation. Procurement and engineering teams must prioritize mold manufacturers who demonstrate deep expertise in advanced polymers, offer transparent DFM processes, and hold relevant automotive certifications. The structural integrity of the final vehicle relies entirely on the steel that shapes it.
Take the following actions to secure your production line:
A: The lifespan depends on the tool classification and the polymer injected. SPI Class 101 molds, built with hardened steel like H13, are designed for over 1 million cycles. However, injecting highly abrasive materials like glass-filled nylon accelerates wear, requiring proactive maintenance and replaceable gate inserts to maintain longevity.
A: It enables part consolidation by molding two different materials—such as a rigid structural base and a soft sealing gasket—in a single cycle. This eliminates the need for heavy metal fasteners, secondary adhesives, and additional assembly steps, significantly reducing the overall weight of the final component.
A: Lightweight parts rely on thin-wall designs that cool rapidly and unevenly. Conformal cooling channels follow the exact geometry of the part, ensuring uniform temperature control. This prevents internal stress accumulation, eliminates severe warpage, and reduces overall cycle times during high-volume production.
A: Automotive trim molds frequently process lightweight aesthetic plastics like ABS, PC/ABS blends, and Thermoplastic Olefins (TPO). These materials offer excellent impact resistance and can achieve Class-A surface finishes, but they require highly polished mold cavities and precise thermal control to prevent surface defects.
A: Manufacturers use the Production Part Approval Process (PPAP). This includes a First Article Inspection (FAI) to verify all dimensions, material testing, and capability studies calculating Cpk values during a pilot run. This rigorous process proves the mold consistently meets all engineering and performance criteria before mass production begins.
