Views: 0 Author: Site Editor Publish Time: 2026-08-20 Origin: Site
The transition from Internal Combustion Engine (ICE) architectures to New Energy Vehicles (NEVs) fundamentally alters the physical, thermal, and environmental demands placed on automotive plastics. Legacy tooling approaches fail on modern NEV platforms. These vehicles require aggressive lightweighting to offset heavy battery mass, strict thermal management for high-voltage systems, and seamless integration of advanced sensors. Using outdated mold standards leads directly to part warpage, assembly failures, unacceptable cycle times, and an inability to process emerging sustainable resins. To successfully manufacture EV plastic components at scale, OEMs and Tier 1 suppliers must adopt updated evaluation criteria for tooling design, material compatibility, automation integration, and supplier capabilities. This guide breaks down the technical requirements and risk mitigation strategies for sourcing high-performance molds engineered specifically for the electric vehicle sector.
Lightweighting Demands Tighter Tolerances: The shift toward thin-wall designs and advanced composites requires molds engineered for high injection pressures without compromising structural integrity, directly impacting vehicle range and emissions.
Thermal Management is Non-Negotiable: Battery enclosures and high-voltage connectors demand plastics with high flame retardancy, necessitating specialized mold coatings and venting systems to handle corrosive outgassing.
Conformal Cooling and AI Drive ROI: Advanced temperature control within the mold, coupled with AI-driven automation and in-mold sensors, is critical to preventing deformation in large NEV panels while maintaining profitable cycle times.
Supplier Vetting Requires Automotive Specificity: Selecting an injection mold supplier hinges on their proven adherence to IATF 16949 standards, capacity for rigorous Design for Manufacturability (DFM) audits, and ability to support mass customization.
Manufacturing components for electric vehicles requires a complete departure from traditional ICE molding parameters. Success criteria on the shop floor now heavily prioritize electrical safety, extreme weight reduction, and aerodynamic efficiency. Tooling engineers evaluate mold bases and cavity blocks based on their ability to handle advanced polymers that withstand harsh electrical environments while meeting stringent environmental targets.
Battery packs add massive weight to electric vehicles. Offsetting this mass is mandatory to maximize vehicle range and decrease overall lifecycle emissions. Engineers achieve this through aggressive lightweighting of structural and semi-structural components. This requires transitioning to thin-wall injection molding techniques and utilizing heavy fiber-reinforced plastics like PA66-GF30 or carbon-fiber composites.
Thin-wall molding introduces severe tooling implications. Molds must withstand significantly higher injection speeds, often exceeding 500 mm/s, and extreme cavity pressures to force highly viscous resins through narrow cross-sections before the melt front freezes. This necessitates increased clamp tonnage requirements—often jumping from standard 3 tons per square inch to 5 or more tons. The mold base must be highly rigid to prevent core deflection and flash. Furthermore, processing glass or carbon fiber-reinforced plastics demands high-hardness, wear-resistant tooling steel. Standard P20 steel degrades rapidly under the abrasive flow of these composites. Toolmakers utilize hardened steels like H13, S136, or specialized powder metallurgy steels for core and cavity blocks to maintain dimensional stability over high-volume production runs.
Components surrounding the battery pack and power electronics operate in high-temperature, high-voltage environments. These parts require specialized resins formulated with heavy flame retardants to achieve V0 flame retardancy ratings. Molding these high-temperature, flame-retardant resins fundamentally impacts mold design and maintenance schedules.
Flame retardant additives, especially halogen-free variants, release highly corrosive gases during the plasticizing and injection phases. This outgassing causes severe corrosive wear on mold surfaces, leading to pitting and premature tool failure. Tooling engineers apply specialized surface treatments, such as titanium nitride (TiN) or hard chrome plating, to protect cavity surfaces. Additionally, specialized venting systems are mandatory. Inadequate venting leads to gas traps, which cause diesel burns on the part surface and compromise the structural integrity of the component. Vents must be precisely machined—often to depths of just 0.015mm for nylon—to allow rapid gas escape without allowing the low-viscosity resin to flash into the vents.

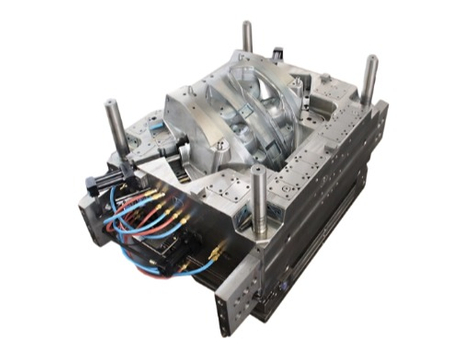

The elimination of the traditional radiator grille has transformed vehicle front fascias into aerodynamic, sensor-integrated surfaces. This shift redefines the requirements for an automotive trim mold. Exterior panels must now function as protective radomes for advanced driver-assistance systems (ADAS), requiring absolute material purity and surface perfection.
Molds for these components must deliver high-gloss, Class-A finishes directly from the tool. Any surface imperfection, scratch, or flow mark can scatter radar or LiDAR signals, rendering the sensors ineffective. This requires seamless overmolding capabilities to integrate transparent polycarbonate (PC) sensor windows into opaque fascia panels. Furthermore, the absolute elimination of weld lines in the sensor transmission area is critical. Weld lines create localized variations in material density, which distort electromagnetic waves. Achieving this requires advanced gating strategies, sequential valve gating hot runners, and precise control over melt flow fronts to push weld lines into non-critical areas.
Automakers face intense regulatory pressure to reduce the carbon footprint of their manufacturing processes. This drives an industry-wide push toward sustainable, recycled, and bio-based plastics. However, these eco-friendly resins present unique processing challenges on the molding floor.
Recycled materials often exhibit inconsistent melt flow indexes and unpredictable shrinkage rates compared to virgin resins. A new energy vehicle plastic part mold must be engineered to accommodate these batch-to-batch variations. This involves designing wider processing windows into the tool. Engineers utilize larger runner systems, optimized gate locations, and highly responsive temperature control units to manage the erratic flow behaviors of bio-based polymers. Mold flow analysis becomes even more critical during the design phase to predict how these inconsistent materials will behave under high injection pressure.
Standard tooling cannot meet the stringent demands of electric vehicle manufacturing. High-performance, Industry 4.0-ready tooling incorporates advanced engineering features designed to maximize precision, reduce cycle times, and eliminate defects at the source.
Traditional straight-line drilled cooling channels often fail to provide uniform temperature control, especially in complex, highly contoured NEV components. Hot spots lead to differential shrinkage, which manifests as severe warpage. Conformal cooling solves this problem. Utilizing Direct Metal Laser Sintering (DMLS) 3D printing, toolmakers create cooling channels that perfectly follow the complex geometry of the part, maintaining a consistent distance from the molding surface.
This uniform temperature control drastically reduces internal stress within the molded plastic. For large exterior panels or battery enclosures, minimizing internal stress is the only way to prevent post-molding warpage. A well-engineered NEV injection mold with conformal cooling extracts heat evenly and rapidly. This ensures dimensional stability and significantly decreases overall cycle times, boosting manufacturing throughput and machine utilization rates.
The proliferation of ADAS and high-voltage architectures requires thousands of electronic connectors, sensor housings, and control unit enclosures per vehicle. These components demand zero-defect manufacturing. Even microscopic flash or dimensional deviation can lead to electrical shorts, moisture ingress, or assembly line stoppages.
Tooling for these parts requires micro-molding capabilities and exceptionally tight tolerance thresholds, often reaching +/- 0.01mm or tighter. Achieving this level of precision requires advanced machining techniques, including wire EDM and 5-axis CNC milling in temperature-controlled environments. The mold must maintain absolute rigidity under clamping force. Any core deflection during injection instantly compromises the wall thickness of delicate electronic housings, leading to dielectric failure.
Modern manufacturing relies on real-time data extraction. Smart tooling integrates cavity pressure and temperature transducers directly into the mold base, typically behind ejector pins. These in-mold sensors feed real-time data to AI-driven automated systems on the injection molding machine.
If the sensors detect a pressure drop or a temperature spike, the machine automatically adjusts the injection profile, holding pressure, or cooling flow to compensate for material viscosity changes. This closed-loop control ensures consistent part quality across thousands of cycles. Furthermore, automated part ejection and robotic handling must be engineered directly into the mold design. End-of-arm tooling (EOAT) clearances, sensor-verified ejection strokes, and automated sprue picking are necessary to support high-volume scaling and zero-defect manufacturing.
Electric vehicles frequently require components that combine rigid structural support with flexible sealing properties. This drives the demand for 2K (two-shot) molding and insert molding technologies directly at the press.
A primary use case is the creation of integrated seals for IP67 and IP69K waterproof battery housings. Overmolding a thermoplastic elastomer (TPE) directly onto a rigid glass-filled nylon substrate eliminates the need for manual gasket assembly. This reduces labor costs and eliminates a potential point of failure for water ingress. Multi-material molding is also critical for dampening components designed for Noise, Vibration, and Harshness (NVH) reduction. In the silent cabin of an EV, any squeak or rattle is highly noticeable. Overmolded dampeners isolate vibrations and improve passenger comfort.
Sourcing tooling for electric vehicle platforms requires a rigorous vetting process. Procurement and engineering teams must assess potential partners based on technical capability, technological maturity, and strict adherence to automotive compliance standards.
The most critical phase of tool building occurs before any steel is cut. Early-stage Design for Manufacturability (DFM) and AI-assisted mold flow analysis are essential for predicting shrinkage, warpage, and weld line locations. A competent supplier uses these tools to optimize part geometry and mold design simultaneously, rather than just accepting a flawed CAD file.
When evaluating an engineering portfolio, look for deep experience with complex parting lines, advanced gating strategies, and a clear understanding of sustainable material behavior. The supplier must demonstrate how they use simulation data to dictate cooling channel layouts and venting strategies. Relying on outdated rules of thumb for NEV components guarantees tooling failure.
The development cycle for electric vehicles is significantly shorter than traditional automotive timelines. A capable custom injection mold supplier must bridge the gap between rapid prototyping and high-volume production efficiently.
Assess their ability to produce soft tooling (aluminum or P20 steel) for functional testing before committing to hardened steel production molds. Evaluate their capacity for modular tooling designs. Modular molds feature interchangeable cavity inserts within a master mold base. This allows automakers to accommodate rapid EV model iterations and mass customization without building entirely new tools, preventing severe production delays during mid-cycle vehicle refreshes.
Automotive manufacturing operates under strict regulatory and quality frameworks. Any potential injection mold supplier must hold mandatory certifications, specifically IATF 16949 and ISO 9001. ISO 14001 certification for environmental management is also increasingly required by major OEMs.
Beyond paper certifications, evaluate the supplier's in-house metrology capabilities. They must possess advanced Coordinate Measuring Machines (CMM) and 3D scanning equipment to verify mold dimensions and part geometry down to the micron. Rigorous First Article Inspection (FAI) reporting is non-negotiable. The supplier must provide comprehensive documentation proving that the molded parts meet all dimensional and performance specifications under production-intent processing conditions.
Procurement teams constantly navigate operational trade-offs when sourcing an automotive injection mold. Understanding how upfront engineering decisions impact long-term production efficiency is critical for maintaining a competitive edge.
The choice of tooling steel directly dictates the mold's lifespan and maintenance schedule. Standard tool steels offer lower upfront material and machining costs. However, they are entirely unsuited for molding abrasive fiber-reinforced polymers or corrosive flame-retardant resins common in NEV applications.
Investing in high-grade, hardened steels significantly increases the initial tooling cost. The trade-off is superior wear resistance and corrosion protection. Using inferior steel leads to rapid cavity wear, resulting in dimensional drift, increased flash, and unacceptable scrap rates. The cost of frequent maintenance downtime, welding repairs, and premature tool replacement quickly eclipses the initial savings of using standard steel.
Advanced tooling features require higher initial capital expenditure. However, features like conformal cooling, multi-drop hot runner systems, and smart sensors provide a massive return on investment over the vehicle's production run.
A premium mold engineered for thermal efficiency reduces cycle times by seconds per part. Over millions of cycles, this equates to significant machine time savings. Hot runner systems eliminate cold sprues, drastically reducing material waste and the energy required to melt and regrind scrap plastic. The higher upfront cost is rapidly offset by lower per-part costs, improved energy efficiency, and a drastic reduction in defect rates.
Tooling Feature | Standard Mold Approach | Advanced NEV Mold Approach | Production Impact |
|---|---|---|---|
Cooling System | Straight-line drilled channels | 3D printed conformal cooling | Reduces cycle time; eliminates warpage in large panels. |
Tool Steel | P20 or equivalent | H13, S136, or Powder Metallurgy | Prevents abrasive wear from glass fibers; resists corrosive outgassing. |
Runner System | Cold runner or standard hot sprue | Sequential valve gate hot runner | Eliminates weld lines; reduces material waste; lowers injection pressure. |
Process Control | Machine-level monitoring only | In-mold cavity pressure/temp sensors | Enables AI-driven closed-loop adjustments; guarantees zero-defect parts. |
Venting | Standard perimeter vents | Micro-machined porous steel inserts | Prevents diesel burns from flame-retardant outgassing without flashing. |
Deploying new tooling for electric vehicle platforms carries inherent risks. Identifying these failure points early allows engineering teams to implement robust mitigation strategies before production begins.
Large, flat components like battery covers, underbody shields, or aerodynamic fascias are highly susceptible to dimensional instability. Uneven cooling or high internal stress leads to severe warpage after the part is ejected. This dimensional distortion causes assembly failures on the production line, halting manufacturing.
To mitigate this risk, teams must execute the following steps:
Mandate comprehensive mold flow analysis during the DFM phase to predict warpage patterns based on specific resin data.
Utilize multi-point valve gate hot runner systems to ensure balanced filling and reduce packing stress across the cavity.
Enforce strict cooling uniformity through conformal cooling channels and high-flow temperature control units.
Implement post-molding cooling fixtures to hold the part in tolerance while it reaches ambient temperature.
Complex NEV molds require extensive machining, specialized surface treatments, and rigorous testing. Delays in custom tool manufacturing can push back entire vehicle launch dates, resulting in massive financial penalties and lost market share.
To mitigate tooling delays, implement these strategies:
Select a tooling partner with comprehensive in-house machining capabilities to reduce reliance on third-party subcontractors.
Require the use of transparent project management software to track tooling progress, steel cutting, and assembly in real-time.
Prioritize suppliers with a proven track record of on-time automotive tooling delivery and the financial stability to expedite raw material procurement.
Establish clear milestones for T0 (first shots), T1, and final texture approval to keep the project on schedule.
Initiate Non-Disclosure Agreements (NDAs) with shortlisted tooling suppliers to facilitate open technical discussions regarding your specific resin and tolerance requirements.
Request sanitized case studies and FAI reports of similar high-voltage or lightweight NEV components they have successfully launched into mass production.
Commission a preliminary DFM audit on a critical component before committing to a full tooling contract to evaluate their engineering depth and mold flow capabilities.
Conduct an on-site or virtual audit of their metrology lab and tryout presses to verify their production-intent testing capabilities and IATF 16949 compliance.
A: NEV molds require significantly tighter tolerances for high-voltage electronics and advanced conformal cooling to prevent warpage in large, lightweight panels. They must also utilize hardened, corrosion-resistant steels to process the highly abrasive, flame-retardant, and high-temperature resins specific to battery enclosures and power systems.
A: Conformal cooling channels follow the exact geometry of the part, providing uniform heat extraction. This prevents internal stress and warpage in complex, thin-wall EV panels while significantly reducing cycle times compared to traditional straight-line drilled cooling channels.
A: Flame-retardant additives release corrosive gases during injection. Molds processing these resins require specialized surface coatings like titanium nitride to prevent cavity degradation. They also need highly engineered venting systems to allow rapid gas escape and prevent diesel burns on the part.
A: Modern molds integrate cavity pressure and temperature sensors that feed real-time data to AI-driven molding machines. The AI analyzes this data to instantly adjust injection speed, pressure, and cooling, ensuring zero-defect manufacturing and consistent part quality across high-volume runs.
A: Automakers can reduce lead times by partnering with suppliers that utilize modular tooling designs with interchangeable cavity inserts. Selecting suppliers with robust in-house machining, AI-assisted DFM, and transparent project management software prevents bottlenecks and accelerates the tool-building process.
A: Standard P20 steel degrades quickly under the abrasive flow of glass-filled resins. Toolmakers must use hardened tool steels like H13, S136, or specialized powder metallurgy steels. These materials provide the necessary wear resistance to maintain tight tolerances over millions of cycles.
