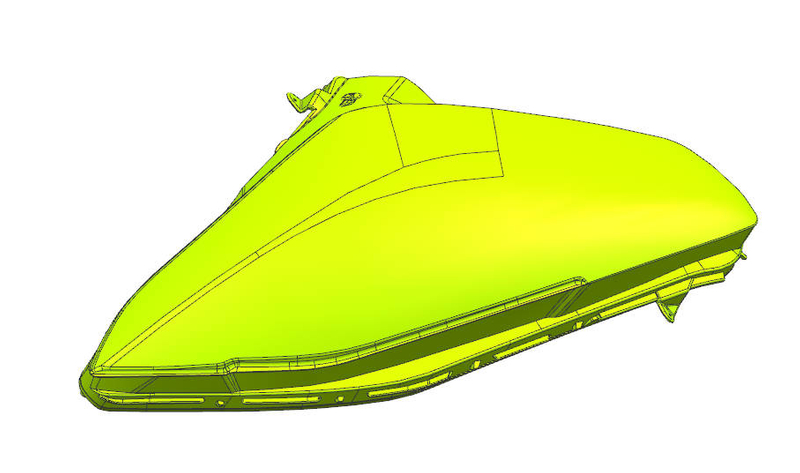

Transparent Auto Headlamp Lens
Mold-Stage Engineering Notes
This is not a product showcase.
It is a set of mold-stage engineering notes for transparent automotive headlamp lens / cover parts, written from practical production experience.
For clear lenses, the question is rarely whether the part can be molded.
The real question is whether it can stay clear and stable once production starts running — not just at T0.
Some problems do not show up immediately.
They appear later, after several thousand shots, when cycle time changes, or when the process window is pushed.
That is why most critical decisions should be made before cutting steel.
Issues We See Too Often on Transparent Lenses
Transparent parts make small problems very visible.
Most issues are not dramatic failures. They are slow, annoying ones that keep coming back:
Flow marks that only appear under certain angles or lighting
Weld lines that seem acceptable at T0, but show up once assembled
Trapped air causing slight haze rather than obvious burn marks
Parts that look clear, but carry internal stress
Warpage that is small on the table, but shows up during lamp assembly
Polished surfaces that degrade after long production runs
Individually, none of these looks serious.
Together, they are what stretch projects far longer than planned.

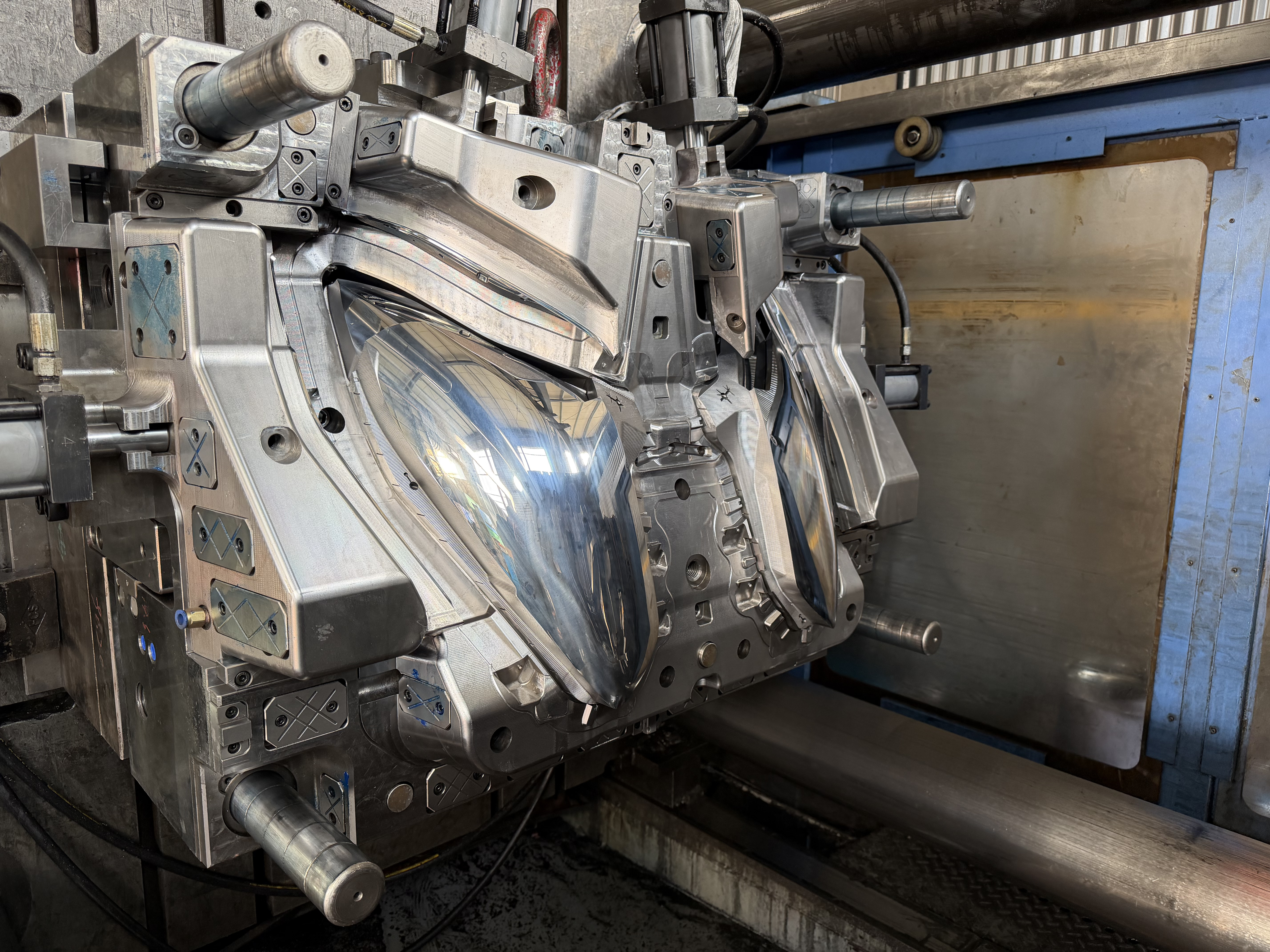

How We Look at Transparent Lens Molds
We focus less on how the mold looks, and more on how it behaves.
A good T0 sample is not the target.
A mold that runs calmly within a normal process window is.
Most problems start when the mold is forced to behave well instead of being designed to behave well.
Our judgment follows the actual molding sequence:
Filling → Venting → Packing → Cooling → Release
If one step is unstable, the rest usually compensates — until it no longer can.
Gate Strategy — Where Instability Often Starts
For transparent lenses, the gate is rarely “just a gate”.
It defines where flow slows down, where pressure builds up, and where stress starts accumulating.
In several projects we have seen, the part filled completely — but the flow was never stable.
Key questions we ask early:
Where does the flow hesitate?
Where do weld lines actually end up, not where we hope they will be?
Are we protecting appearance, or just hiding the gate location?
A hidden gate does not help if it creates unstable flow.
Venting — Problems That Do Not Always Burn
Poor venting does not always cause burn marks.
More often, it creates slight haze or inconsistent clarity that is hard to explain later.
This usually shows up after process adjustments, not during the first trial.
What matters in venting:
Is the vent placed at the real flow end?
Does it still work when conditions change?
Can it stay effective without flashing after long runs?
If venting only works under perfect settings, it usually becomes a problem.
Cooling — Where Late-Stage Problems Begin
Cooling often looks fine on drawings.
In reality, this is where many late-stage issues start.
Uneven cooling may not ruin appearance immediately, but it builds internal stress and shape instability over time.
For transparent lenses, cooling is treated as a balance system:
temperature balance → shrinkage balance → shape stability
If this balance is off, polishing or parameter tuning rarely fixes the root cause.
Ejection and Release — Often Ignored Until It’s Too Late
For clear lenses, ejection marks are never “minor”.
Even small local force can leave traces that only appear under light.
We try to avoid solving release problems by force.
If the part does not want to release naturally, something earlier in the system usually needs attention.
Our Position on Transparent Lens Projects
We do not rely on repeated polishing or extreme process tuning to save appearance.
Those methods may work once, but the problems often return.
The more effective approach is to identify risks early and deal with them at the mold-system level.
This usually results in:
Fewer trial loops
Less rework after T0
More stable appearance during mass production
Lower hidden cost later in the project
When This Approach Makes Sense
This way of working fits projects such as:
Aftermarket automotive headlamp lenses
Transparent parts with strict appearance requirements
Projects that have already suffered from repeated adjustments
Teams that prefer fewer surprises later, even if it means more thinking early
Final Note
The difficulty of transparent lens molds is not on the surface.
It sits inside the molding system, where problems are harder to see and more expensive to fix.
In our experience, problems found before steel cutting are usually manageable.
Problems found later rarely are.
