The Step-by-Step Process of Plastic Injection Molding Explained

Introduction

Every mold maker has lived through this moment: that split second when molten plastic enters the cavity, and everything you designed—cooling channels, vent depths, gate size, steel selection—suddenly becomes truth or mistake.

Plastic injection molding looks simple from the outside: melt, inject, cool, eject. But anyone working in manufacturing knows the real story is far deeper. This process is a chain reaction where each step influences the next, and tiny decisions create big outcomes—precision, cycle time, consistency, cost.

At Guangdian Technology, we’ve spent decades building molds for automotive lighting and interior/exterior trim parts. We’ve learned that the success of injection molding begins long before the first pellet melts, and continues long after the part comes out of the mold.

This is the step-by-step process—told not from a textbook, but from the floor of a mold shop that lives this every day.

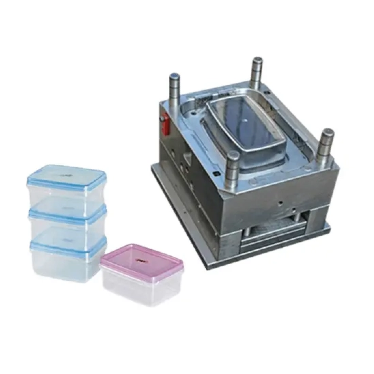

What Is Plastic Injection Molding?

At its core, plastic injection molding is a manufacturing method that transforms thermoplastic pellets into high-precision parts. The idea sounds simple, but its importance—especially in automotive—comes from three advantages:

• Consistency

• Efficiency

• Complexity

In automotive lighting, for example, lenses, light guides, and reflector housings all require optical-grade precision. Only injection molding can meet that level of accuracy at scale—and only a well-built    auto lamp mold    can deliver the required surface quality.

Why the Injection Molding Process Matters

The process is not just a series of steps—it is the invisible “quality system” behind every good part.

A few degrees of melt temperature can change clarity. A single second of cooling variation can change warpage. A poorly estimated packing pressure can create sink marks or flashing.

When people say “the mold is good,” they are rarely talking about the steel alone. What they really mean is:    the entire injection molding process was engineered properly from day one.

This requires thinking like designers, engineers, and material specialists all at once.

Step 1 — Mold Design: Where Everything Begins

Before steel is cut, before pellets are dried, and before the machine is powered on, success already begins in    mold design.

Good mold design is not just geometry. It is prediction. It is engineering intuition.

A designer must consider:

• shrinkage and warpage

• cooling line layout

• venting strategy

• gate balance and location

• steel selection

In automotive lighting, the stakes are higher. Optical lens molds demand absolute precision—something only possible with a designer who understands both design theory and real molding behavior.

Design is the mind of the mold.

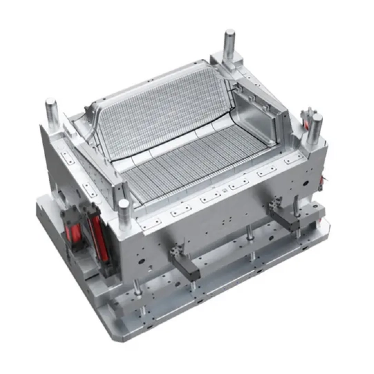

Step 2 — Mold Manufacturing: Turning Design Into Steel

When a mold enters the workshop, design becomes reality. Here, accuracy is no longer a concept—it’s something that must be cut, milled, hardened, polished, and verified with care.

This is where    mold manufacturing    takes over.

A typical high-precision mold involves:

• 5-axis CNC machining

• high-speed milling

• EDM for fine details

• manual fitting of critical areas

• optical polishing for lens surfaces

• CMM inspection to verify tolerances

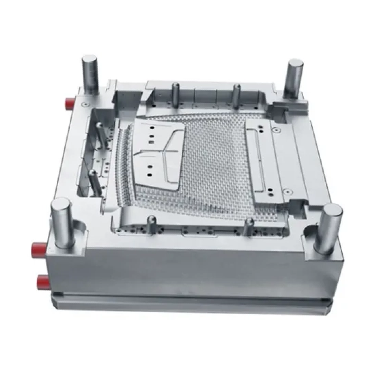

For automotive interior and exterior trim, a well-engineered    trim mold    ensures long-term durability and consistent aesthetics.

Step 3 — Material Preparation & Drying

This is one of the quiet but critical steps.

If moisture remains in PC or PMMA pellets used in lamp lenses, bubbles and splay appear immediately. Proper preparation ensures stable, repeatable molding and protects both appearance and mechanical performance.

Step 4 — Feeding & Plasticizing

Pellets enter the barrel through the hopper. Inside the barrel, the screw rotates and melts the material through frictional heat and heater bands.

This stage determines:

• melt uniformity

• temperature stability

• viscosity behavior

• readiness for injection

A skilled technician relies on both instruments and intuition—sound, flow, and even smell. Good molding is a technical job, but it is also sensory.

Step 5 — Injection & Filling

Molten plastic is injected into the cavity under high pressure. The melt front races through runners and gates, across ribs, around corners, and into every detail of the design.

Good flow behavior depends on:

• balanced runners

• proper gate size and location

• smooth flow paths

• predictable shrinkage paths

Bad flow cannot be corrected later. It begins here, in the combination of mold design, process settings, and material behavior.

Step 6 — Packing / Hold Pressure

After the cavity fills, packing pressure compensates for material shrinkage as it cools.

This stage determines:

• part density

• dimensional accuracy

• sink mark prevention

• wall thickness stability

Packing is where many hidden defects are quietly created or prevented. Too little packing leads to sinks and voids; too much creates flash and stress.

Step 7 — Cooling & Solidification

Cooling silently dominates the cycle time. In most real production environments, it consumes the largest portion of each cycle.

A well-designed cooling system can reduce cycle time dramatically, which is why mold designers and    manufacturers    work closely to optimize waterlines and thermal balance.

Cooling is where profit is won or lost. Every second saved, while maintaining quality, directly improves output and reduces cost.

Step 8 — Mold Opening & Ejection

Once the part solidifies, the mold opens and ejector pins, sleeves, or lifters release the part from the cavity.

Good ejection is gentle and quiet. If the part sticks or shows ejection marks, it is not just an operator problem—it usually points back to mold design, surface finish, or process settings.

Step 9 — Post-Processing & Quality Inspection

Parts may require trimming, coating, assembly, or various inspections depending on their final application.

For lighting components, inspections must be extremely strict. Any defect in the lens or light guide will be magnified once the lamp is assembled and turned on.

When the injection molding process is engineered well, post-processing becomes minimal, and most parts move smoothly from molding to assembly.

Key Variables That Influence Molding Quality

Real consistency requires more than just setting temperature and pressure. In practice, the following variables must work together:

• melt temperature

• mold temperature

• injection speed

• packing pressure and time

• cooling efficiency

• material grade and behavior

• mold structure and venting

• overall cycle optimization

When these align, molding becomes stable and predictable. When they do not, even a perfect mold will struggle to perform.

Why a Well-Engineered Process Matters

A strong injection molding process delivers clear, measurable benefits:

• high precision and dimensional stability

• fast, repeatable cycles

• fewer defects and less scrap

• longer mold life and better ROI

• stable visual appearance for visible components

This is especially true in automotive molds, where quality cannot be compromised and every defect has a cost.

Why Work With a Mold Manufacturer Who Understands the Process

Many companies build molds. But not all truly understand molding.

At Guangdian Technology, our philosophy is simple:    a mold is not a block of steel. It is a living system.

We design molds—from    auto lamp molds    to    two-shot molds—to breathe, cool, vent, and run smoothly for hundreds of thousands of cycles.

We support you through the entire journey:

• correct shrinkage handling for each resin

• cycle time optimization in real production

• long tool life through proper steel and design

• stable mass production with clear process windows

• direct communication between your team and our engineers

When mold engineering and molding science work together, everything becomes easier—production, quality, and cost.

Conclusion

Plastic injection molding is not just a manufacturing method—it is a discipline shaped by experience, precision, and continuous improvement.

This is the approach we take every day at    Guangdian Technology:    engineering every step with intention, so every shot counts.
