Views: 0 Author: Site Editor Publish Time: 2025-09-22 Origin: Site
Injection molding is a cornerstone of modern manufacturing. It enables high‑volume production of precise, durable plastic parts at competitive cost. From automotive components to medical devices and consumer goods, the process is used worldwide.
But even advanced equipment and strict controls cannot eliminate problems. Injection molding issues still occur, leading to defects, scrap, and delays. Understanding root causes—and how to fix them—is essential for quality and cost control.

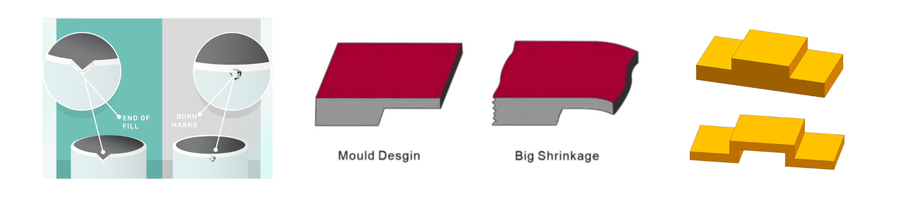

Injection molding issues are problems that arise during the cycle and create defects in the finished part. Some are visible on the surface; others weaken the structure or affect function.
Appearance defects: flow lines, discoloration, burn marks.
Dimensional defects: warping, shrinkage, distortion.
Structural defects: voids, weak weld lines, trapped air bubbles.
Classifying a defect helps narrow root causes. With a clear type in hand, you can adjust processing, update materials, or refine tooling to solve the issue.

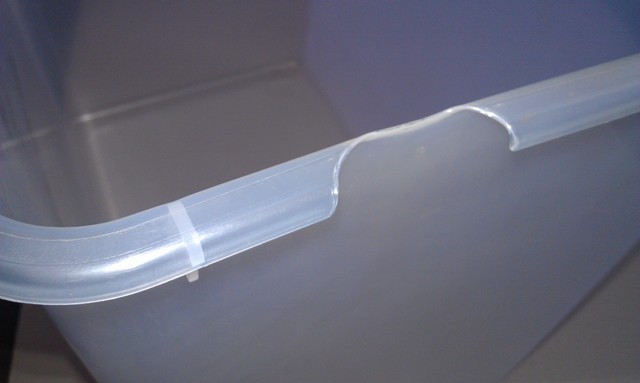

Occurs when the melt does not fully fill the cavity, leaving missing or weak geometry.

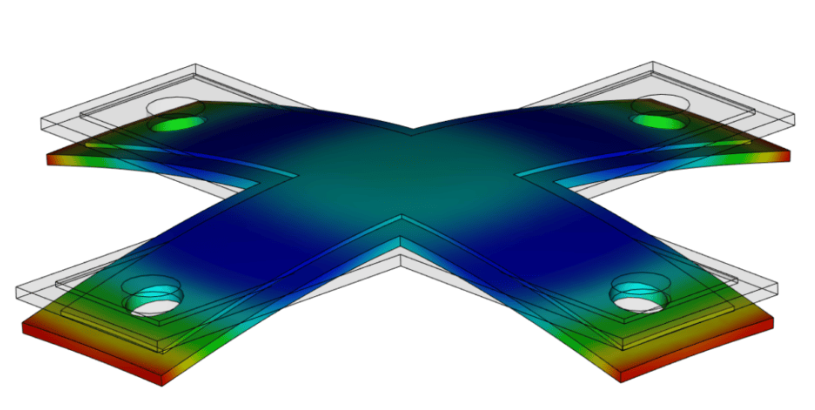

Uneven cooling creates internal stresses that bend or twist the part, often causing assembly issues.

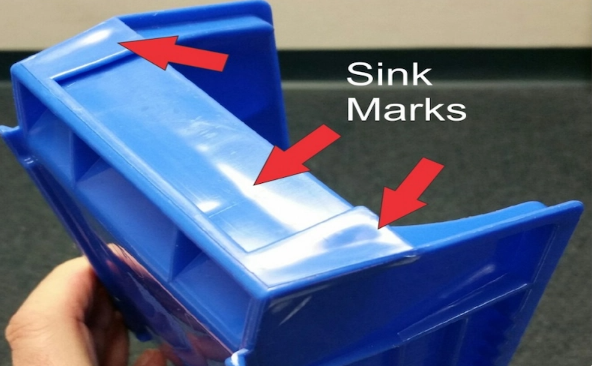

Small depressions typically found in thick sections.

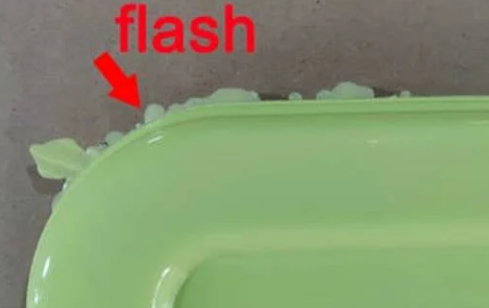

Thin layers of extra material along the parting line or ejector pins.
Dark streaks appear when trapped air overheats or the resin degrades.

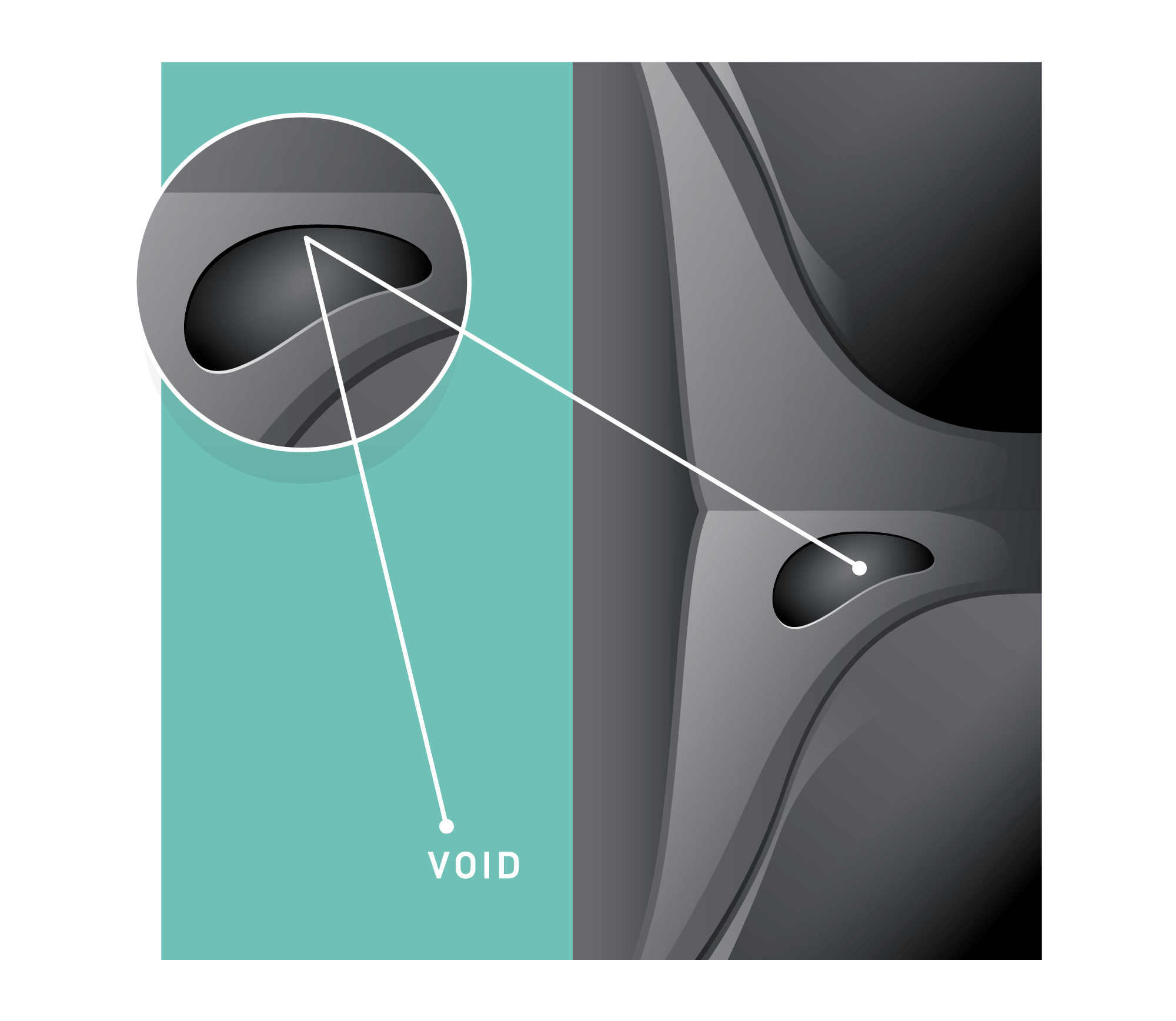

Internal cavities weaken parts and can show as surface bubbles.

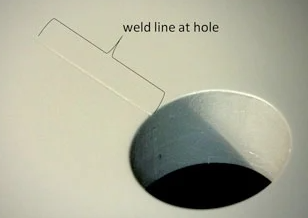

Visual blemishes that also reduce strength in severe cases.
Use a structured, step‑by‑step approach to find root causes and shorten downtime.
Adjust process settings: temperature, pressure, injection speed, and cooling time.
Improve mold design: add vents, balance runners, maintain uniform walls.
Handle materials correctly: keep resins dry, choose suitable additives, prevent contamination.
Maintain equipment: clean molds, replace worn components, and calibrate machines.
Apply SPC and Six Sigma for process control.
Run mold flow simulations before tooling and production.
Schedule preventive maintenance and mold inspections.
Train teams to recognize early warning signs and act quickly.
Prevention reduces scrap, stabilizes cycle time, and protects delivery commitments.
Faults are errors in the process or equipment. Defects are flaws in the molded part. Knowing the difference helps global teams align language and corrective actions.
Process: tune parameters to control shrinkage and internal stress.
Design: mold for manufacturability, balanced filling, and effective venting.
Material: choose the right resin and follow strict handling and drying.
Inspection: use CT, tensile tests, and automated vision for consistent quality.
Why do injection molding defects occur?
They stem from process errors, mold design issues, material problems, or equipment wear.
How can molding problems be fixed quickly?
Start with process adjustments, then review mold design and materials.
What is the difference between a defect and a fault?
A defect affects the part itself; a fault occurs in the process or machine.
Which defects are most common?
Short shots, warping, sink marks, flash, and burn marks occur frequently.
Injection molding issues are common, but manageable. By recognizing typical defects, tracing their causes, and applying structured troubleshooting, manufacturers can reduce waste and improve part quality. Preventive maintenance, robust quality control, and ongoing training are the best long‑term defenses.
