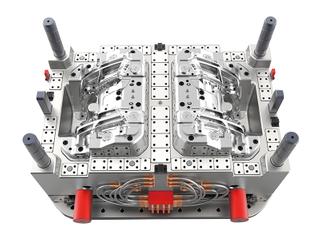

Translating a theoretical optical design into a physical, mass-producible automotive lens tests a manufacturer's true capabilities. A design performing perfectly in simulation easily fails in production if the mold cannot replicate the exact micro-geometries. Optical engineers create brilliant light distribution models, but these models mean nothing if the manufacturing process introduces microscopic flaws.
Subpar tooling leads to optical distortion, light scattering, internal stress marks, and failure to meet strict DOT/ECE photometric regulations. These defects cause high scrap rates, costly tool rework, and delayed vehicle launches. When a lens fails compliance testing, the root cause usually traces back to the tooling phase. You cannot fix a poorly machined cavity by adjusting injection molding parameters.
Bridging the gap between optical engineering and manufacturing requires a specialized, concurrent approach to tooling. This guide breaks down how optical specifications dictate the engineering of a precision injection mold. We provide a framework for evaluating tooling partners and mitigating mass-production risks. You will see exactly how to align optical requirements with practical molding realities on the shop floor.
Surface Control is Non-Negotiable: Achieving true optical clarity requires Class A surface finishes, demanding specific high-hardness tool steels (e.g., H13 at 48–52 HRC) and rigorous diamond polishing protocols.
Geometry Dictates Manufacturability: Polymer mold-friendly designs must incorporate precise draft angles and uniform wall thicknesses to prevent optical distortion and birefringence during the injection process.
Thermal Management Drives Consistency: Advanced conformal cooling is required to manage the distinct flow dynamics of optical polymers (like PC and PMMA), preventing warpage and maintaining stable geometry across high-volume runs.
Vendor Selection Requires Turnkey Optical Expertise: Not all custom plastic mold makers can handle optics; evaluating a partner requires auditing their specific capabilities in concurrent engineering, optical metrology, micro-texturing, and defect mitigation.
The primary success metric for an optical tool is its ability to produce parts with zero defects while maintaining structural integrity and dimensional stability. Achieving this standard requires intense focus on the physical geometry of the mold cavity. Even a deviation of a few microns alters light refraction, causing a headlamp to fail regulatory beam pattern tests.
An excellent optical design or a perfectly machined mold is not enough in isolation. Optical designers and mold engineers must collaborate during the initial CAD phase. When these teams work in silos, designers often create geometries that look great on screen but trap gas or warp during cooling. Concurrent engineering forces both disciplines to compromise early, ensuring the final design is actually manufacturable.
The learning curve of optical manufacturing is steep. Design for Manufacturability (DFM) reviews align theoretical light transmission with physical molding constraints. During these reviews, engineers identify areas where plastic flow might hesitate. If a wall thickness drops abruptly from 3mm to 1.5mm, the flow front stalls. This creates a knit line. In a standard plastic part, a knit line is a cosmetic issue. In an optic, it acts as an unintended lens that blocks or scatters light. Catching these issues before cutting steel saves weeks of rework.
Modern automotive styling demands aggressive, sweeping lines. Machining complex curvature radii without introducing microscopic tool marks is a significant challenge. CNC machines must operate at incredibly high spindle speeds (often exceeding 30,000 RPM) with minimal step-overs (down to 0.005mm) to create a near-perfect surface straight off the mill. Any remaining tool marks scatter light and degrade the optical performance of the lens.
Class A surface standards are an absolute necessity for transparent components to ensure unhindered light transmission. The surface must be entirely free of pits, scratches, and orange peel effects. If the surface is flawed, the light beam diffuses unpredictably.
Designers constantly face trade-offs between aggressive automotive styling and optical performance. Sharp angles and deep draws look fantastic on a concept car but create nightmares for a transparent plastic lens mold. Deep draws require massive draft angles to eject properly, which can interfere with the intended optical path. Engineers must soften internal radii and adjust styling cues to maintain optimal light flow.
Polymer mold-friendly design guidelines dictate the absolute necessity of draft angles for all outside edges, mounting flanges, and holes. Draft angles allow the plastic part to release from the steel cavity without sticking. Without proper draft, the ejection system applies excessive force. This induces mechanical stress into the lens and alters its refractive index.
Insufficient draft leads to scuffing during ejection, instantly ruining the optical surface. As the part pushes out of the mold, any vertical wall without a draft angle drags against the steel. This friction creates micro-scratches along the surface. In an optical lens, this is a catastrophic failure.
Recommended Draft Angles for Optical Polymers | ||
Material / Surface Type | Minimum Draft Angle | Application Notes |
|---|---|---|
Polycarbonate (PC) - High Polish | 1.0° to 1.5° | Requires highly polished cavity walls to prevent vacuum sticking during ejection. |
Acrylic (PMMA) - High Polish | 1.5° to 2.0° | PMMA is brittle; higher draft prevents cracking when ejector pins strike the part. |
Light Texture (VDI 12-18) | 2.0° to 3.0° | Used for mild light diffusion. Add 1.5° per 0.001" of texture depth. |
Heavy Texture (VDI 24+) | 3.5° to 5.0°+ | Used for aggressive glare control. Insufficient draft causes severe drag marks. |
Deep Structural Ribs | 0.5° to 1.0° per side | Maintains structural rigidity without compromising the optical path. |
The choice of mold steel directly impacts the achievable surface finish, venting capabilities, and the longevity of the tool under high injection pressures. You cannot achieve a world-class optical finish on low-grade steel. The foundation of any successful automotive lighting mold design rests on the metallurgical properties of the tool blocks.
Evaluating the use of P20 versus H13 tool steels is the first step in material selection. P20 is a pre-hardened steel commonly used for standard automotive trim. It machines easily but lacks the density and hardness required for high-end optics. Under the extreme injection pressures required for thick lenses, P20 washes out. The sharp corners of optical prisms round off, degrading the beam pattern over hundreds of thousands of cycles.
H13 is a hot-work tool steel that can be hardened significantly after machining, making it the industry standard for optical applications. A hardness of 48–52 HRC is the baseline for high-volume optical molds. This hardness level maintains surface integrity and resists wear from abrasive polymer flows. Achieving this requires a precise heat treatment process, including vacuum quenching and double tempering, to reach the target hardness without making the steel brittle.
Steel purity is just as critical as hardness. Vacuum-degassed steels are essential to prevent microscopic inclusions. During the steel manufacturing process, gases like hydrogen and oxygen become trapped, creating tiny voids or hard spots. When mold makers polish the cavity, these inclusions tear out, leaving microscopic pits on the surface. Vacuum degassing removes these impurities, ensuring a flawless, mirror-like finish.
The mold design must adapt to the specific rheology of the chosen polymer. Optical-grade PC and PMMA behave very differently under pressure. PC offers high impact resistance and requires higher processing temperatures, but it is highly viscous. PMMA provides superior clarity and flows easier, but it is incredibly brittle. A precision injection mold must be tailored to these specific flow characteristics.
Gate sizing and placement must be engineered to minimize shear stress. When viscous plastic forces its way through a small gate, the polymer chains stretch and align unnaturally. This creates shear stress, which causes birefringence—a phenomenon where light refracts at different angles depending on its polarization. Birefringence severely compromises the light beam pattern. Engineers use large fan gates or edge gates to allow the material to flow smoothly into the cavity without excessive shear.
Micro-venting plays a critical role in optical molding. As plastic fills the cavity, it displaces air. If that air cannot escape, it compresses and superheats, causing diesel burn marks on the optical surfaces. Micro-vents allow trapped gases to escape during high-pressure injection without causing flash. These vents must be machined precisely—typically between 0.01mm and 0.02mm deep—so air escapes, but molten plastic does not. We place these vents at the end of the fill path and inside blind pockets where gas naturally accumulates.
The final optical performance relies heavily on the microscopic topography of the mold cavity. A perfectly engineered geometry still fails if the surface finish is inadequate. Light interacts with the surface at a microscopic level, meaning the polishing and texturing processes must be executed with extreme precision.
Achieving an SPI A-1 or A-2 finish requires multi-step, manual and automated diamond polishing processes. Mold makers start with coarse stones (around 320 grit) to remove CNC machining marks, progressively moving to finer grits (up to 1200). The final stages involve applying diamond paste, starting at 15-micron and finishing with 3-micron paste using specialized felt bobs. This process demands highly skilled technicians who understand how much pressure to apply without altering the underlying geometry.
Implementation risks during polishing are high. Over-polishing is a common error that alters the optical geometry. If a technician spends too much time on a specific radius, they flatten the curve, changing the focal point of the lens. Another risk is the orange peel effect, caused by using too soft of a polishing tool or applying excessive pressure. Orange peel creates a wavy, micro-rippled surface that scatters light and ruins clarity. We perform final polishing in cleanroom environments to prevent airborne dust from scratching the cavity.
Specific automotive headlamp lens injection mold designs require controlled surface textures to diffuse light and meet anti-glare regulations. Features like pillow optics and fluting break up the intense LED light source, spreading it evenly across the road while preventing blinding glare for oncoming drivers. These textures must be applied with absolute consistency across the mold surface.
Evaluating texturing methods comes down to chemical etching versus 5-axis laser texturing. Chemical etching involves masking the mold and using acid to eat away the steel. While cost-effective, it lacks precise depth control. 5-axis laser texturing vaporizes the steel layer by layer, often in 5-micron increments, offering unparalleled precision. Laser texturing is highly recommended for complex optical arrays because it ensures exact replication of the mathematical texture model.
Achieving clean transitions between distinct optical zones is a massive engineering challenge. A single lens may feature a crystal-clear high-beam zone immediately adjacent to a heavily textured diffusion zone. The transition line between these zones must be razor-sharp. Any light bleed or tooling overlap at this boundary creates optical artifacts and stray light, causing the lamp to fail regulatory testing. Laser ablation allows us to create a hard stop between these zones with zero overlap.
Uneven cooling is the leading cause of internal stress, warpage, and optical distortion in thick-walled optical lenses. When plastic cools at different rates, it shrinks unevenly. This pulls the part out of tolerance and introduces stress that alters light refraction. Managing the thermal dynamics inside the mold is just as important as managing the steel geometry.
Traditional straight-line cooling channels are drilled through the mold block. They are cheap to manufacture but cannot follow the complex contours of an automotive lens. This leaves hot spots in thick sections and over-cools thin sections. Conformal cooling inserts, manufactured via Direct Metal Laser Sintering (DMLS), solve this problem. These 3D-printed steel inserts feature cooling channels that wrap around the exact geometry of the part, often getting within 2mm of the cavity surface.
Conformal cooling maintains a uniform temperature gradient across complex lens geometries. By ensuring the entire part cools at the exact same rate, engineers drastically reduce cycle times and minimize sink marks. The uniform cooling also prevents the internal stresses that cause birefringence. To maximize heat transfer, the cooling system must achieve turbulent flow, requiring a Reynolds number greater than 4000. We engineer the channel diameters and pump pressures specifically to hit this metric.
Comparison of Cooling Strategies in Optical Molds | ||
Feature | Traditional Straight-Line Cooling | Conformal Cooling (DMLS) |
|---|---|---|
Channel Path | Linear, limited by drilling capabilities | Follows exact part contours |
Distance to Cavity | Often 10mm to 15mm away | Can be engineered within 2mm to 3mm |
Temperature Gradient | Uneven, prone to hot spots | Highly uniform across all geometries |
Cycle Time | Longer, dictated by thickest sections | Up to 30% faster due to optimized heat transfer |
Optical Distortion Risk | High (due to uneven shrinkage) | Very Low (due to uniform cooling rates) |
Volumetric shrinkage in thick optical parts, such as light guides or thick-walled TIR (Total Internal Reflection) lenses, is notoriously difficult to predict. As a thick mass of polycarbonate cools, it shrinks significantly. If this shrinkage is not perfectly accounted for, the final lens will be dimensionally inaccurate, and the focal points will be misaligned.
Mold flow analysis and precise tooling offsets compensate for shrinkage. Engineers simulate the injection and cooling process to predict exactly how the plastic will behave. They then scale the mold cavity slightly larger than the desired final part. However, simulation is never 100% accurate, which necessitates a cautious machining approach.
The steel-safe machining approach involves leaving microscopic amounts of steel on the mold cavity during initial cuts. It is easy to remove more metal later, but nearly impossible to add metal back without compromising the optical finish. After the first-article parts are molded, we measure them on a CMM and test them in a photometric lab. Engineers use the test data to perform iterative tuning. We put the mold back on the mill and remove the remaining steel—sometimes just 0.02mm—precisely where needed to bring the lens into perfect optical compliance.
Selecting a vendor based solely on tooling cost leads to catastrophic project delays when optical compliance fails. A cheap mold that produces defective lenses is worthless. You must evaluate potential partners based on their specific experience with optical requirements, not just their ability to cut steel.
A one-stop shop approach is highly beneficial for optical projects. You need a partner with the ability to move seamlessly from single-cavity prototype molds to multi-cavity, hardened steel production molds. Prototyping validates optical performance before committing to a massive production tool. When the same team handles both phases, the transition is smooth and efficient.
Transferring prototype designs to a different mass-production vendor carries severe risks. You lose the tribal knowledge gained during the prototyping phase. Tooling discrepancies arise because different shops use different machining strategies and shrinkage assumptions. This leads to misaligned optical expectations, where the production parts fail to match the performance of the approved prototypes.
A capable automotive mold manufacturer must possess advanced metrology equipment. Standard calipers and micrometers are insufficient for optics. You must verify that the vendor utilizes coordinate measuring machines (CMM) with a volumetric accuracy of at least 1.5 microns. They also need white light interferometry for measuring surface roughness (Ra) at the nanometer level, and spectrophotometers for testing light transmission.
First article inspection (FAI) for an optical mold goes far beyond checking physical dimensions. Dimensional validation only proves the part matches the CAD model. The vendor must facilitate in-house or partnered photometric testing using a goniophotometer to verify the actual beam pattern. Until the lens passes a light distribution test against FMVSS 108 or ECE standards, the custom plastic mold is not truly finished.
Successful optical tooling requires engineering a highly stable environment that perfectly replicates a mathematical prescription under extreme manufacturing pressures. Every decision, from the hardness of the steel to the placement of the micro-vents, directly impacts how light travels through the final lens. Cutting corners on tooling guarantees failure in photometric testing.
Procurement and engineering teams must prioritize manufacturers who demonstrate proven expertise in turnkey optics, high-hardness steel machining, SPI A-1 polishing, conformal cooling, and advanced optical metrology. An experienced partner understands that the mold is merely a vehicle to achieve optical compliance.
To ensure your next lighting project launches on time and meets all regulatory standards, take the following actions:
Mandate a rigorous Design for Manufacturability (DFM) review specifically focused on polymer flow and optical geometry before approving any tool builds.
Verify that your CAD models incorporate adequate draft angles for all optical and textured surfaces to prevent ejection scuffing.
Audit your tooling partner's metrology lab to ensure they have white light interferometry and access to photometric testing facilities.
Specify vacuum-degassed H13 steel (or equivalent) for all mass-production optical cavities to prevent surface pitting.
Require mold flow simulations to validate gate locations and micro-venting strategies, minimizing shear stress and birefringence.
A: H13 tool steel hardened to 48-52 HRC is the industry standard for high-volume optical molds. It provides excellent wear resistance against viscous polymers. It is crucial to specify vacuum-degassed H13 or specialized pre-hardened optical steels to ensure high purity. This prevents microscopic inclusions that cause pitting during the intensive SPI A-1 diamond polishing process.
A: Insufficient draft angles cause the polymer to drag against the steel cavity wall during ejection. This immense friction creates scuffs, micro-scratches, and stress marks on the surface of the lens. These imperfections instantly ruin light transmission and scatter the beam pattern, leading to photometric testing failures.
A: Birefringence occurs when excessive shear stress during injection, poor gate design, or uneven cooling creates internal stresses within the polymer structure. These stresses cause the polymer chains to align unnaturally, which alters how light refracts as it passes through the plastic, resulting in distorted or split light beams.
A: Complex automotive lens geometries have varying wall thicknesses that cool at different rates. Conformal cooling channels follow the exact contour of the part, ensuring uniform heat transfer. This uniform cooling prevents the uneven volumetric shrinkage that causes warpage, sink marks, and severe optical distortion in thick-walled sections.
A: Optical molds require extreme dimensional tolerances and flawless Class A (SPI A-1) surface finishes. They demand specialized micro-venting to prevent diesel burns, clean texture transitions for light diffusion, and stringent thermal management like conformal cooling to prevent internal stress. Standard molds rarely require this level of microscopic precision.
A: Manufacturers are transitioning from traditional chemical etching to 5-axis laser texturing. Laser texturing vaporizes the steel with extreme precision, allowing for exact depth control and perfect replication of complex optical arrays like pillow optics or fluting, ensuring accurate light diffusion and strict glare control.
