Automotive Lighting Mold Design and Manufacturing

Quick Overview

• ️ Automotive lamp structure and components

• ⚙️ Common materials used in automotive lamp molding

• ️ Key considerations in automotive lighting mold design

• Step-by-step manufacturing workflow

• Why partner with us for your automotive lighting molds

️

Automotive Lamp Structure

Automotive lamps, whether headlamps or tail lamps, feature complex geometries designed to balance function with appearance. The housing provides structural integrity, while optical surfaces guide and project light effectively. We design molds that ensure dimensional accuracy, sealing performance, and smooth integration with the vehicle body. In practice, this means lamps that look sleek and perform reliably under real‑world conditions. Such precision relies on advanced car lighting mold manufacturing techniques.

Automotive Lamp Components

Headlamps include high beam lights, low beam lights, turn signals, LED modules, housings, optical lenses, bezels, and reflectors. Every element requires precision tooling to achieve clarity, durability, and performance.

Tail lamps include running lights, turn signals, brake lights, reverse lights, housings, optical lenses, bezels, reflectors, LEDs, and light guides. As LED and light guide technologies become standard, molds must deliver exceptional surface quality and tight tolerances. Together, these components highlight the role of robust headlamp injection mold and tail lamp mold manufacturing in meeting safety and styling demands.

⚙️ Materials for Automotive Lamp Molding

Different lamp components demand different materials:

•  PC (Polycarbonate), PBT (Polybutylene Terephthalate), ABS+PC: Strong, heat‑resistant plastics used in housings.

•  PMMA (Polymethyl Methacrylate): Known for its optical clarity, perfect for lenses.

•  BMC (Bulk Molding Compound) or PEI (Polyetherimide): High‑performance resins ideal for precision reflectors.

• ✨ PC with hard coating: Ensures scratch resistance and A‑class finish on decorative parts.

By selecting the right materials, we help ensure lamps meet industry demands for clarity, strength, and durability. For instance, PMMA is a common choice in optical lens mold projects where transparency is critical.

️ Key Considerations in Automotive Lighting Mold Design

• ⚡ Weld lines and warpage control: Weld lines on clear lenses can scatter light, while warpage in housings can affect sealing.

•  Cooling design: Poor cooling risks shrinkage and uneven surfaces.

• ️ Gas venting: Prevents air pockets that can distort reflectors.

•  Multi‑color and multi‑material molding: Enables clear‑and‑amber turn signals or complex LED light guides.

•  Surface finishing: A polished reflector improves light distribution, while texturing reduces glare on decorative bezels.

These considerations show how thoughtful mold design impacts product quality, safety, and appearance, especially in advanced LED headlamp housing mold projects.

Automotive Lighting Mold Manufacturing Process

We combine advanced machining with careful material selection:

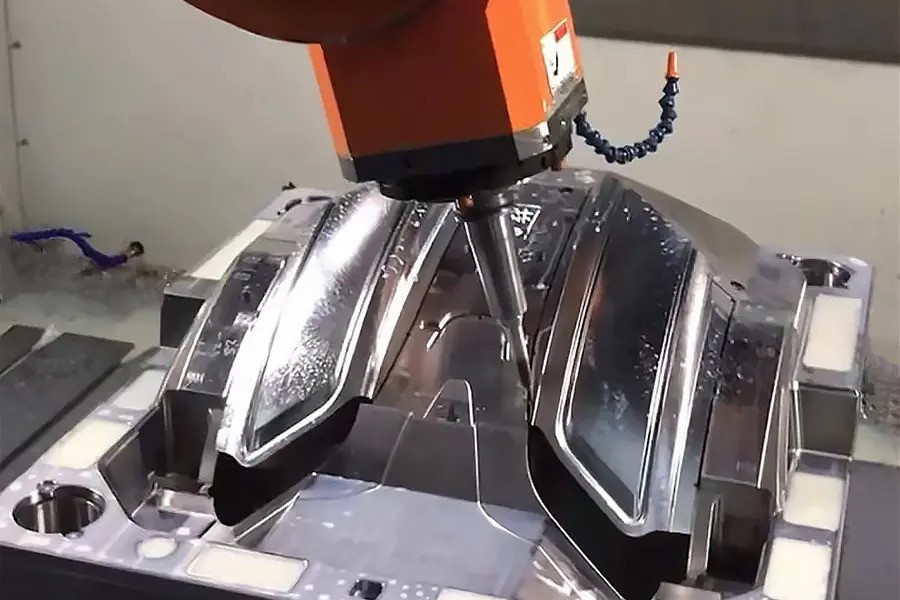

• ️ CNC machining: Automated, precise cutting of steel for accurate cavities.




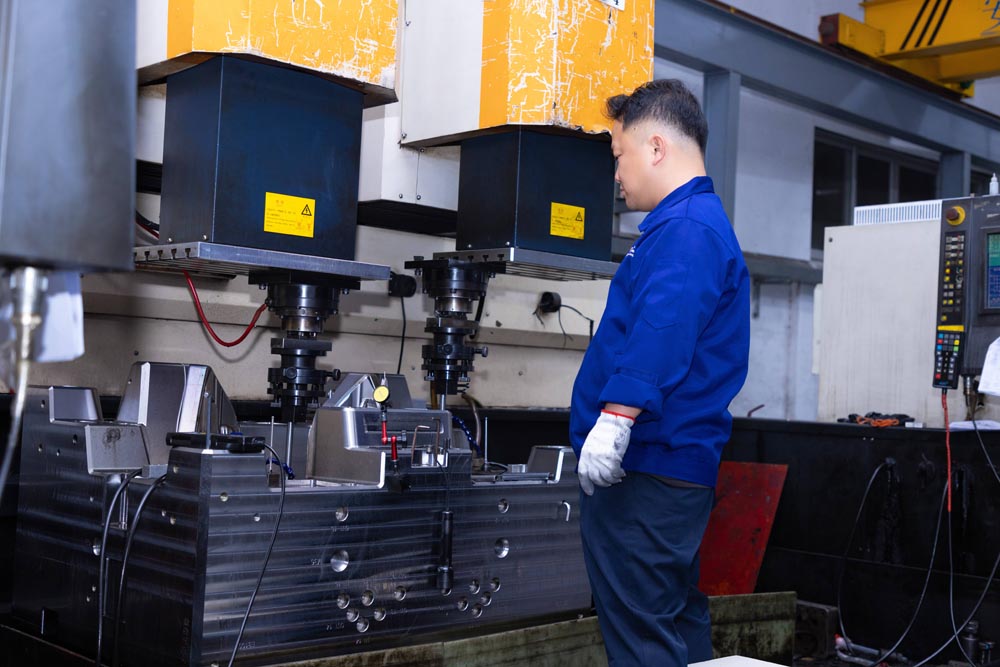

• ⚡ EDM (Electrical Discharge Machining): Creates fine details difficult to achieve by other methods.

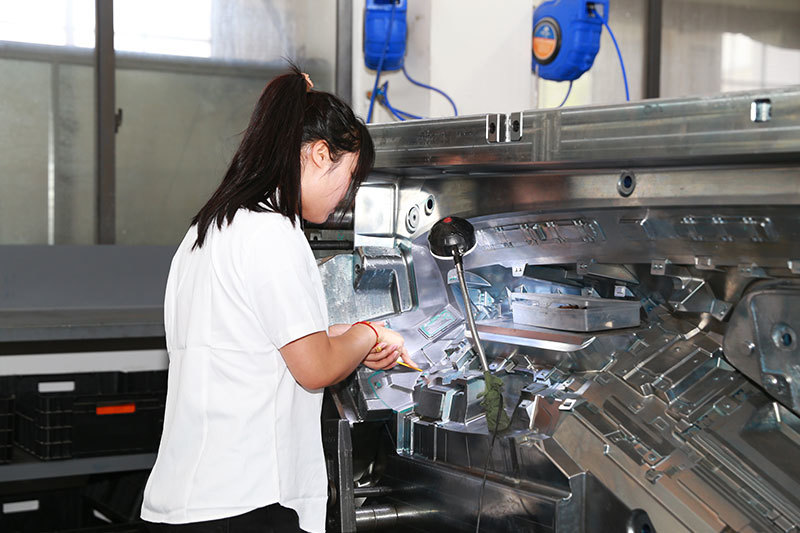

• ✨ Polishing: Vital for clear lenses and reflectors.

•  Texturing: Adds functional or decorative surface finishes.

• ️ Surface treatment: Enhances durability and wear resistance.

Together, these processes ensure every mold is assembled, tested, and optimized to deliver consistent results in high precision injection tooling.

Steel Selection for Automotive Lighting Molds

•  NAK80: Excellent polishability, ideal for transparent parts.

•  2343ESR / H13: Tough steels resistant to heat fatigue, used in high‑temp conditions.

• ⚙️ SKD61: A versatile die steel with wear and heat resistance.

•  P20: Easy to machine, often used in prototype or mid‑volume molds.

Choosing the right steel helps balance cost, durability, and mold lifespan, ensuring long‑lasting car lighting mold solutions.

Automotive Lighting Mold Development Workflow

Customer Request

We start by analyzing customer needs, vehicle specifications, and project feasibility. Our engineers provide solid planning and a strong foundation for design.

✅ Key Value: Early engagement minimizes risks and aligns solutions with customer goals.

Customer Evaluation

We carefully evaluate project scope, timing, and technical feasibility. This step ensures expectations are realistic and aligned before moving forward.

✅ Key Value: Comprehensive evaluation reduces risks and ensures smooth project execution.

Contract

We confirm project terms, technical standards, and tooling specifications to ensure alignment between both parties.

✅ Key Value: Clear agreements reduce misunderstandings and strengthen collaboration.

Tool Specification

We define all tooling parameters in detail, from steel grade to cooling layouts, creating a clear roadmap for production.

✅ Key Value: Detailed specifications ensure design consistency and reduce costly revisions.

Initial Design

We draft design concepts and exchange CAD data, carefully integrating optical requirements into the mold plan.

✅ Key Value: Early data sharing improves accuracy and keeps projects moving smoothly.

Data Exchange

We collaborate with customers on CAD data and design feedback, ensuring seamless integration of requirements.

✅ Key Value: Transparent data exchange avoids errors and accelerates design approval.

Detailed Design

We finalize mold designs, including gating, cooling, and parting surfaces. Customers review and approve before production.

✅ Key Value: Rigorous design reviews minimize costly changes later.

Approval

Customers confirm final designs and sign off, ensuring clarity before manufacturing begins.

✅ Key Value: Clear approvals reduce delays and give confidence to all parties.

⚙️ Mold Manufacturing (2–3 months)

We machine and finish components with precision, ensuring durable, high‑quality results.

✅ Key Value: Advanced equipment and skilled teams ensure reliable molds that meet demanding standards.

Trial Molding

We run trials to verify part quality, then fine‑tune the mold to meet dimensional and optical requirements.

✅ Key Value: Rigorous trials guarantee that final parts achieve high precision and performance.

Optimization

We refine tooling and processes based on trial results, ensuring the mold performs consistently at production scale.

✅ Key Value: Continuous optimization improves quality and extends mold life.

Sample Delivery

We deliver samples for testing and validation, ensuring all requirements are met.

✅ Key Value: Direct customer feedback confirms reliability and satisfaction.

Customer Approval

Customers test and validate delivered samples, confirming all project goals are achieved.

✅ Key Value: Formal approval ensures confidence before full‑scale production.

Final Delivery

We provide the finished mold with documentation and full transparency on specifications.

✅ Key Value: Comprehensive delivery builds trust and clarity.

After‑sales Support

We offer ongoing support for maintenance or improvements, helping customers maximize mold performance.

✅ Key Value: Continuous support maximizes mold value and builds long‑term partnerships.

This workflow keeps projects transparent and efficient, while giving customers confidence at every stage.

Conclusion

Looking for support in headlamp injection mold, tail lamp mold manufacturing, or high precision injection tooling? Let’s talk.
