A durable, precisely engineered automotive headlamp injection mold is the foundation of reliable lighting components. We focus on precision tooling for global carmakers with a clean, efficient production workflow and clear project communication.
Selecting the right material is the first step in creating a robust plastic injection mold for headlamp housing. Polypropylene with mineral fillers such as PP+T20 and PP+T40 offers strength, dimensional stability, and cost efficiency. Polycarbonate or ABS blends are used when higher impact resistance or heat performance is required.
We evaluate thermal behavior, shrinkage, and sealing needs to match the mold to the target resin and application.
Modern headlamp housings include multiple assembly points, adjustment holes, and connector slots that demand tight tolerances. Our car headlight mold designs use inserts and sliders to form complex geometry while suppressing flash and deformation.
Dedicated sealing lands around adjustment holes and wiring ports.
Guided ejection for thin walls and delicate edges.
Venting and gating tuned for smooth flow and clean surfaces.

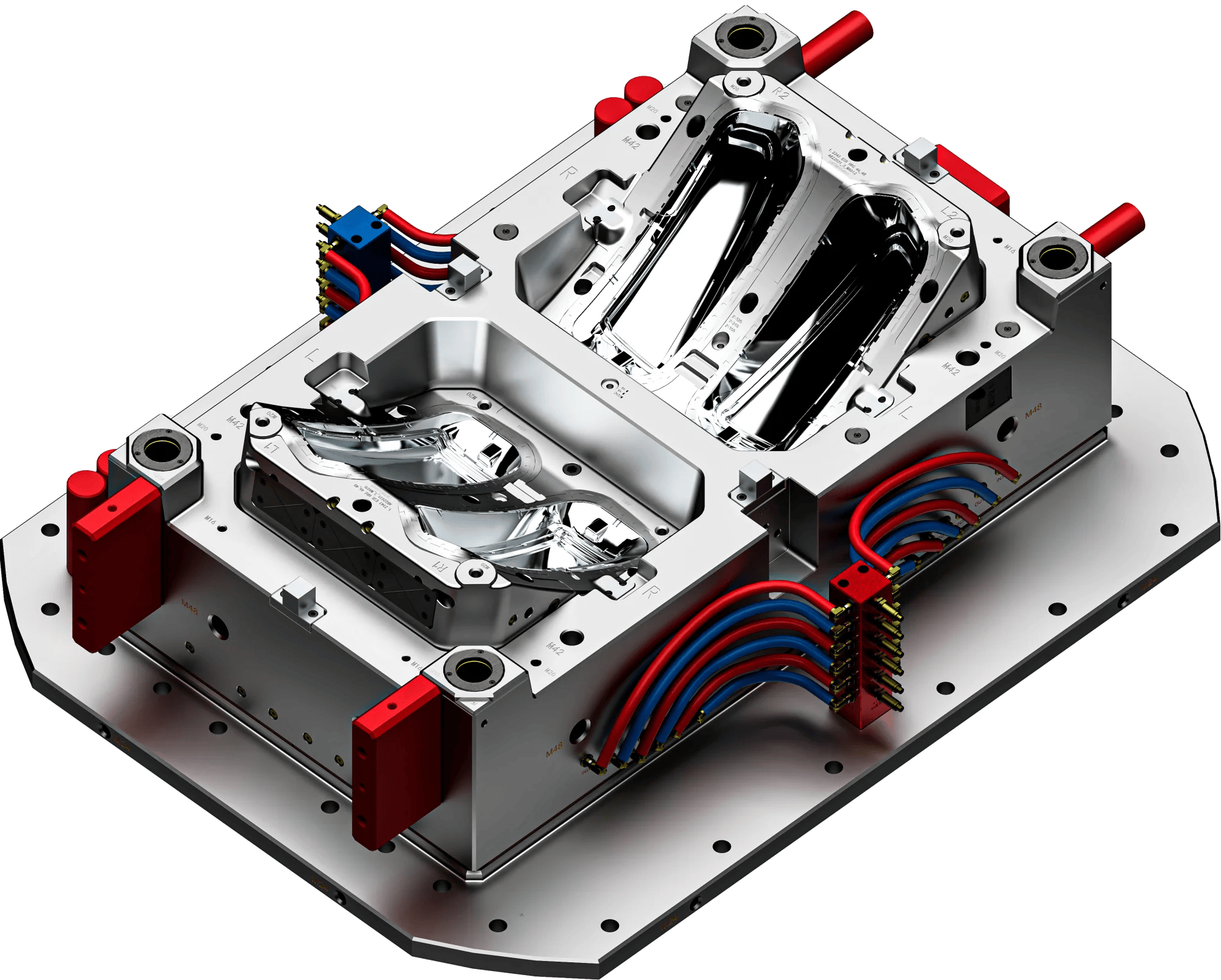

Uniform temperature is essential for stability and cycle time. A well‑engineered automotive lighting mold cooling system keeps the cavity balanced and prevents warpage.
Cooling channels grouped for thermal balance across the cavity.
Optimized channel diameters and proximity to hotspots.
Short, repeatable cycles that extend tool life and reduce adjustments.
Building an automotive headlamp injection mold requires controlled, repeatable steps. Our in‑house workflow keeps quality consistent and lead time predictable.

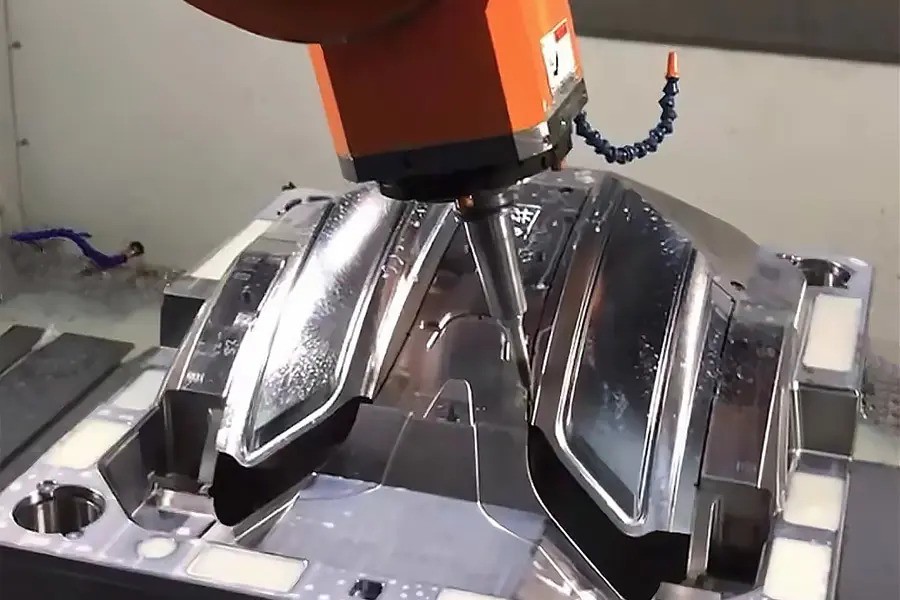

CNC machining for precision cavity cutting and datum control.

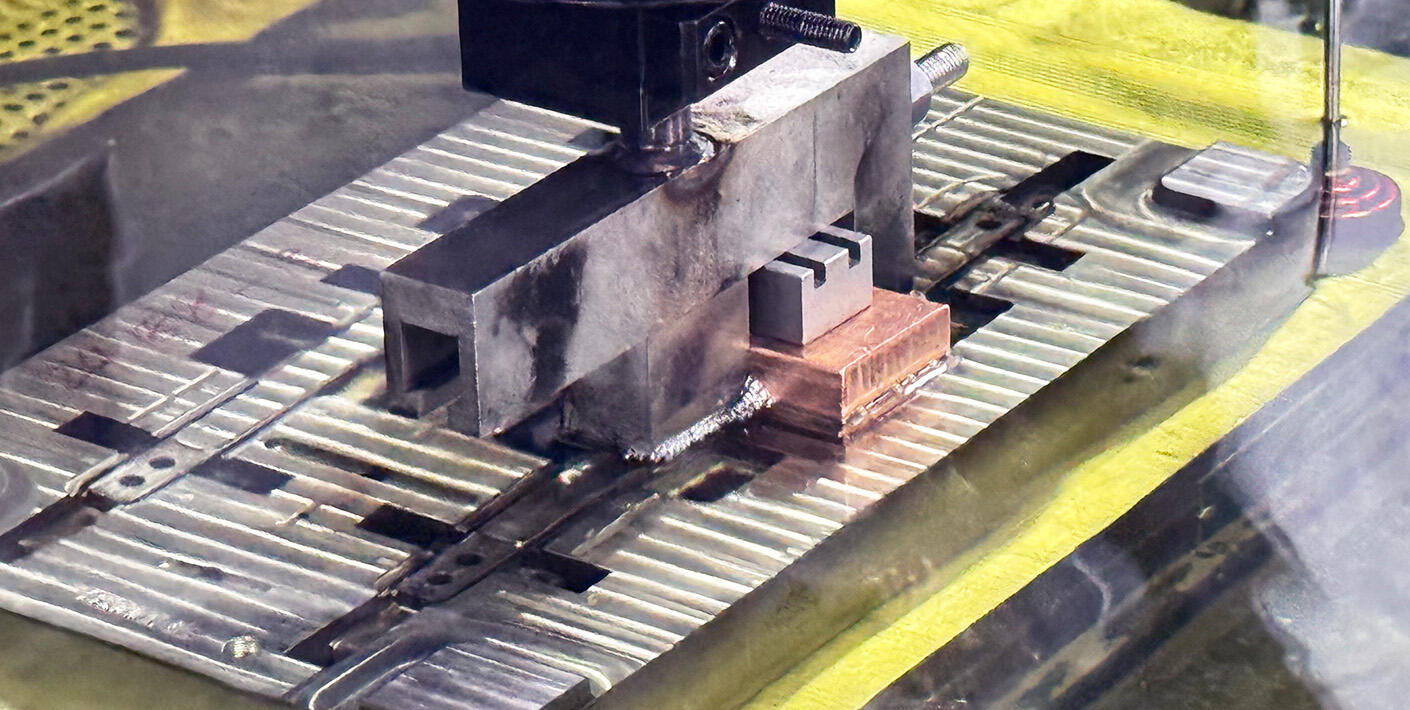

EDM for deep or sharp internal features.

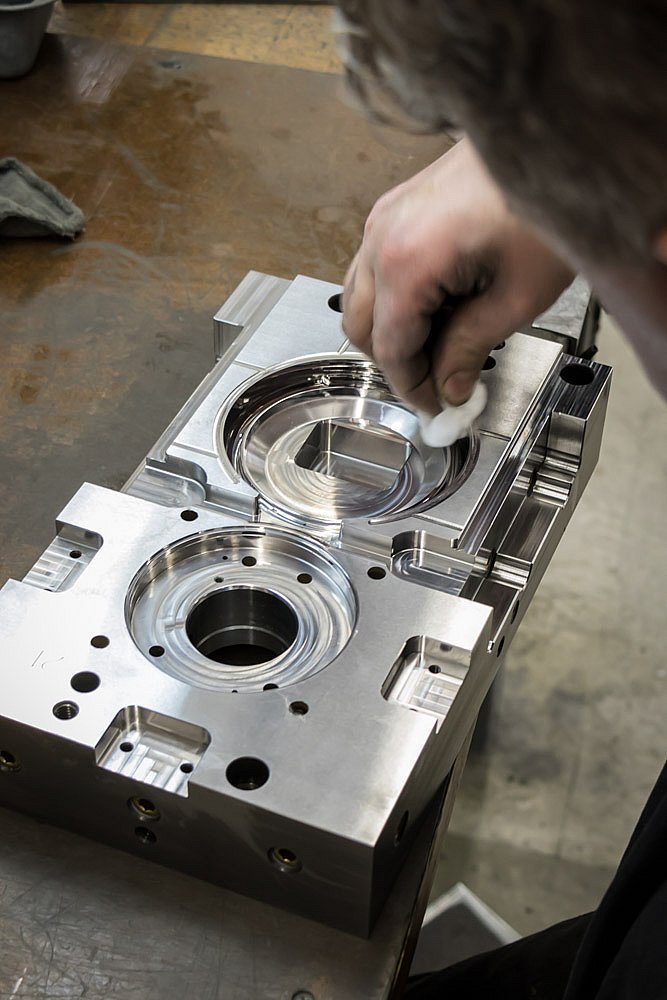

Polishing to meet optical and sealing requirements.

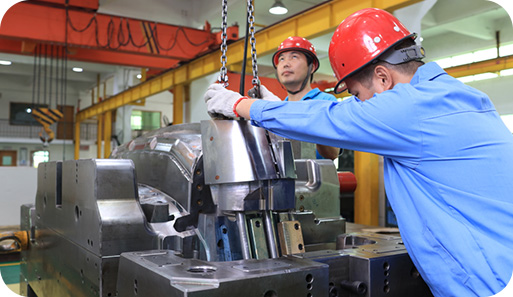

Assembly with alignment checks and motion verification.

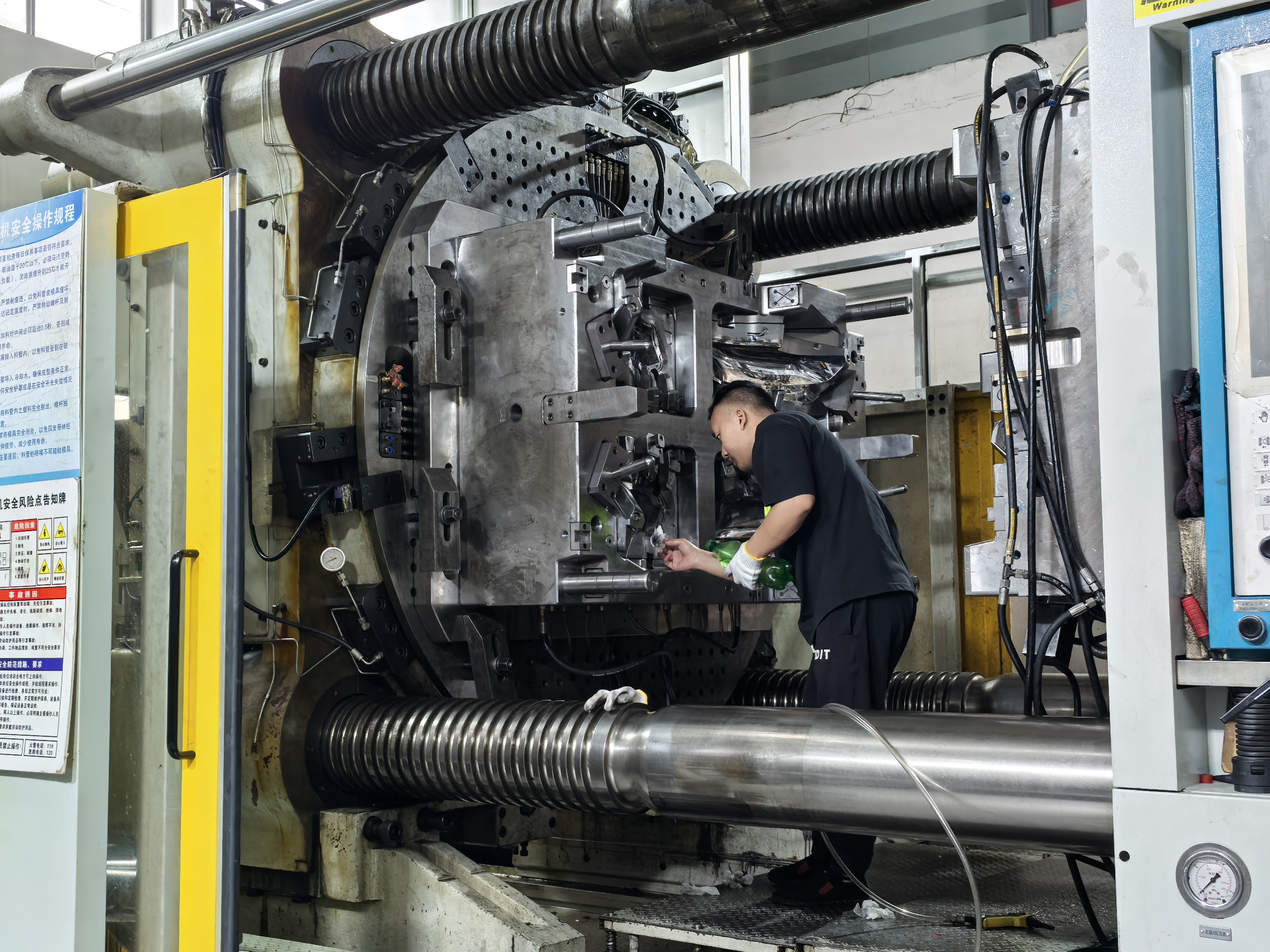

Trial molding to validate fit, finish, and dimensional stability.
Each tool is inspected and validated before shipment to support stable mass production.

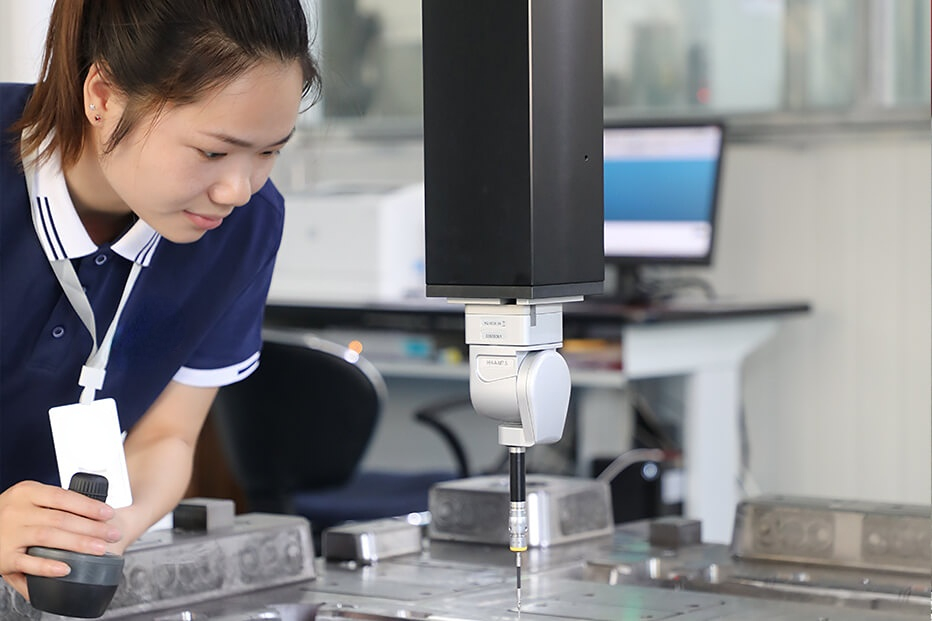

Dimensional inspection for interchangeability.
Defect prevention via optimized gating and venting.
Sealing checks for waterproof requirements.
Durability assessment for long production runs.
As a custom headlamp mold supplier, we tailor each project to your specifications—from concept to delivery. We provide clear milestones, mold‑flow reviews, and reliable logistics to support programs worldwide.
From material selection to cooling design, and from machining to mold trials, every step shapes the reliability of the headlamp housing. Our tooling combines precise engineering with dependable delivery to bring long‑term value to automotive lighting programs.
