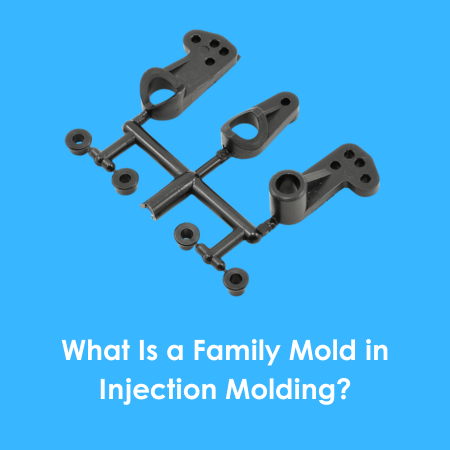

A family mold is an injection mold that produces two or more different plastic parts in one molding cycle. Unlike a multi-cavity mold where each cavity makes the same part, a family mold has cavities for different components that are often assembled together. For example, it can mold a lamp housing and its mounting bracket, or left and right interior trim components at the same time.
Family molds help reduce tooling investment and speed up production, especially in early-stage projects or low-to-medium volume manufacturing. However, because each cavity has different dimensions, wall thickness, and cooling behavior, the mold must be carefully designed to prevent defects such as short shots, warpage, sink marks, or overpacking.
This article explains how family molds work, their advantages, engineering challenges, design rules, and when they should not be used. It also shares how Guangdian Technology evaluates and designs family molds for the automotive and plastic injection molding industries.
A family mold is built to produce multiple different parts in the same molding cycle. These parts are typically designed to assemble together, such as a lamp housing and its bracket, or left and right trim pieces. This is different from a multi-cavity mold, which repeats the same cavity many times to make identical parts.
The main reason to choose a family mold is to reduce tooling cost and shorten time-to-market. Instead of building several tools, one mold and one press can deliver a full set of mating parts. For readers new to the process, see our overview of injection molding.
One mold replaces two or more individual tools. You save on steel, machining, tryouts, setup time, and maintenance. This is attractive for low-to-medium volumes and for pilot runs.
When parts must fit together, molding them in one cycle keeps material, temperature, and processing conditions consistent. This lowers the risk of dimensional mismatch during assembly.
Engineering teams can validate assemblies earlier because the set of parts is available from a single mold. This helps reduce iterations and speeds up production release.
Balanced output of related parts reduces overstock and shortages. With a well-designed hot runner, scrap is also lower than with a cold runner system.
Each cavity has a different volume and wall structure. Melt will fill the easiest cavity first. Smaller parts can overpack or flash while larger parts are still unfilled. Careful runner sizing and gate design are required to keep pressures aligned.
Cycle time is set by the slowest cooling part. Thin parts are ready early; thick parts need more time. Without targeted cooling, the whole mold waits for the thickest section.
Unequal runner lengths and cross-sections create different pressure drops and heat loss to each cavity. Parts farther from the sprue may show short shots, hesitation marks, or flow lines.
Wear is not uniform across cavities. Gates, inserts, and vents age differently and need more targeted maintenance than a standard multi-cavity tool.
Uniform quality across different cavities depends on precise runner balance, tuned cooling, and a stable process window.
Cold runner: lower upfront cost but higher material waste and harder balancing for family molds.
Hot runner: better thermal control, easier to balance, and lower resin waste. It is often the preferred choice for complex family tools or high-value resins.
Match runner length and diameter to equalize pressure drop.
Use flow restrictors or valve gates on faster cavities.
Apply sequential valve gating when part volumes differ greatly.
Upfront CAE is essential. We run moldflow analysis to predict pressure, temperature, and fill time to finalize the gating layout before cutting steel.
Uniform cooling is the backbone of dimensional control. Cooling circuits should follow each cavity’s geometry and be independently tuned when possible. High-conductivity inserts (e.g., BeCu) help extract heat in thick sections.
Cycle time is dictated by the thickest part; other cavities must wait. Aim to reduce thermal mass with design-for-molding and targeted cooling.
Conformal cooling can improve uniformity for complex shapes. It increases tooling cost but can pay back in stability and throughput.
Different parts have different shrinkage and warpage modes. Cavity compensation must reflect each part’s material and geometry. CAE-driven adjustments reduce tryout loops and prevent assembly issues.
Steel selection: P20 for general-purpose molds; H13/1.2343 where higher temperature and wear resistance are needed.
Venting: provide adequate venting on ribs and flow ends to avoid burn marks and pressure spikes.
Cooling balance: align packing pressure and cooling to control internal stress and warpage.
For optical parts—such as lenses or light guides in auto lamp molds—tiny pressure or temperature differences can create visible defects. In most optical programs, separate tools are the safer choice.
Optical or high-precision parts where surface quality and tight tolerances are critical.
Large part volume differences (as a rule of thumb, beyond ~30%), which make flow balance unstable.
Visible Class-A surfaces for exterior components.
Very high-volume programs where separate tools give better process windows and lower lifetime cost.
Automotive interior trim: bezels, clips, switch components (see automotive interior trim molds).
Home appliances: button sets, covers, control panels.
Consumer electronics: small mating parts and accessory sets.
Medical devices: multiple disposable components molded as sets.
We also implement two-shot molding when multi-material is required. However, two-shot and family tooling solve different problems: two-shot combines materials in one part; a family mold makes several different parts in one shot.
Guangdian Technology focuses on practical engineering and stable production. We do not force a family mold when risk is high. Instead, we evaluate cost, quality, and delivery holistically and recommend the most reliable route.
Engineering-first: DFM and moldflow to validate runner balance, pressure, and cooling before cutting steel.
Automotive expertise: deep experience in lighting and interior trim helps us judge where a family tool makes sense—and where it should be split.
Maintainability: interchangeable inserts and accessible gates/vents reduce downtime across unevenly stressed cavities.
Learn more about our mold design and mold manufacturing capabilities, or explore our rapid prototyping options for early validation.
Family molds can reduce tooling costs and shorten project timelines by producing multiple related parts in one molding cycle. They are especially useful for assemblies, low-to-medium production volumes, and early-stage product validation. However, they require careful engineering to manage flow balance, cooling differences, shrinkage rates, and cavity wear. For optical lenses, high-precision parts, or high-volume programs, separate molds are often a better and safer choice.
If you are considering a family mold for your project, we can help you evaluate cost, manufacturability, and risk before any investment is made. Our engineering team at Guangdian Technology will analyze part geometry, material, and production needs to determine whether a family mold is the best solution — or if a split-mold strategy provides greater stability.
