Long Curved Upper Trim Mold for Stable End Gaps in Rear Bumper Systems
This page introduces a long curved automotive exterior upper trim injection mold developed as a matching component installed above the rear bumper lower guard. The focus is not how the first samples look, but how the part behaves across batches — especially where end gaps tend to reveal accumulated variation.
Overall geometry — long arc length, continuous curvature, and full-perimeter functional features.
What really happens with long curved exterior trims
With parts of this length, issues rarely show up where people expect them to.
The middle section often looks fine and stays stable.
Small variations accumulate quietly along the arc.
Problems tend to surface at both ends — especially at visible gaps.
End gaps are not isolated defects — they are where everything else eventually shows up.

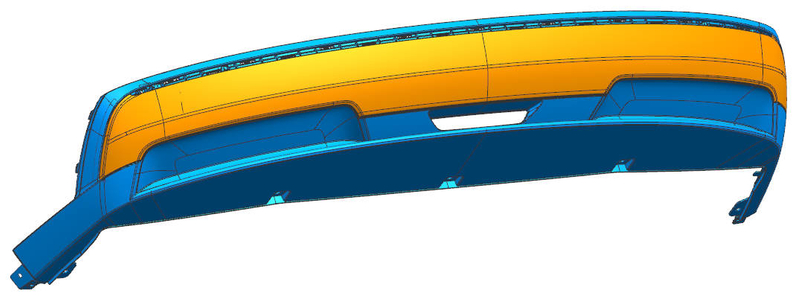

Assembly context — the upper trim is judged by how quietly it holds the end gaps over time.
Full-perimeter clips create a hidden constraint
This component uses clip features distributed around the full perimeter on the backside. That matters more than most people think.
Each clip root introduces local mass and delayed cooling.
The perimeter behaves like a closed boundary during solidification.
Shrinkage freedom is limited, forcing stress to redistribute along the arc.
Perimeter clips — not a “detail”, but a stability driver for long curved exterior parts.
Length consistency is a production issue, not a drawing issue
For long curved trims, total length is not controlled by a single dimension on the drawing. In reality, it is the accumulated result of shrinkage behavior and thermal history.
Small thermal or process changes shift where stress is released.
Different batches experience different heat histories.
End-gap behavior can drift gradually during mass production.
What matters most is not nominal length, but whether the part settles the same way every time.

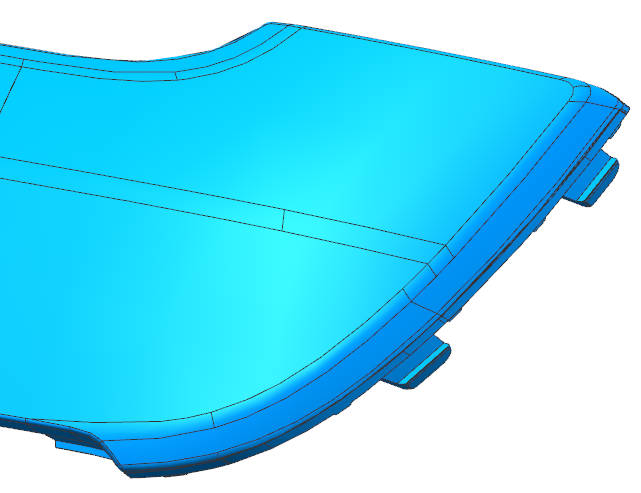

End area close-up — where accumulated variation is most likely to be expressed as gap change.
Filling strategy chosen for stability over speed
Filling was evaluated with one question in mind: will it remain predictable over time?
Balanced melt progression along the arc.
Avoided local over-packing near clip-dense regions.
Protected surface quality without pushing pressure unnecessarily.
Cycle time was not the priority here — consistency was.
Cooling logic that supports repeatable end-gap behavior
For this type of part, cooling behavior is where end-gap stability is actually decided. The target is not aggressive cooling, but repeatable behavior across batches and seasons.

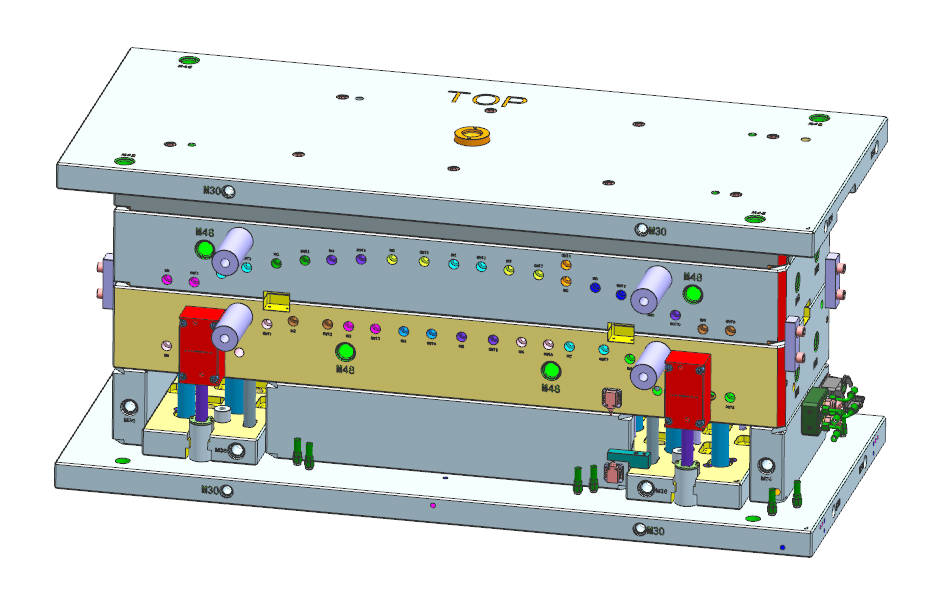

Mold-side engineering view — supporting stable shrinkage release along a long curved part.
Ejection designed to avoid making things worse
Clip features are released via lifters and slides before ejection. The goal is simple: do not restrain the part during release, and do not amplify distortion at the last step.

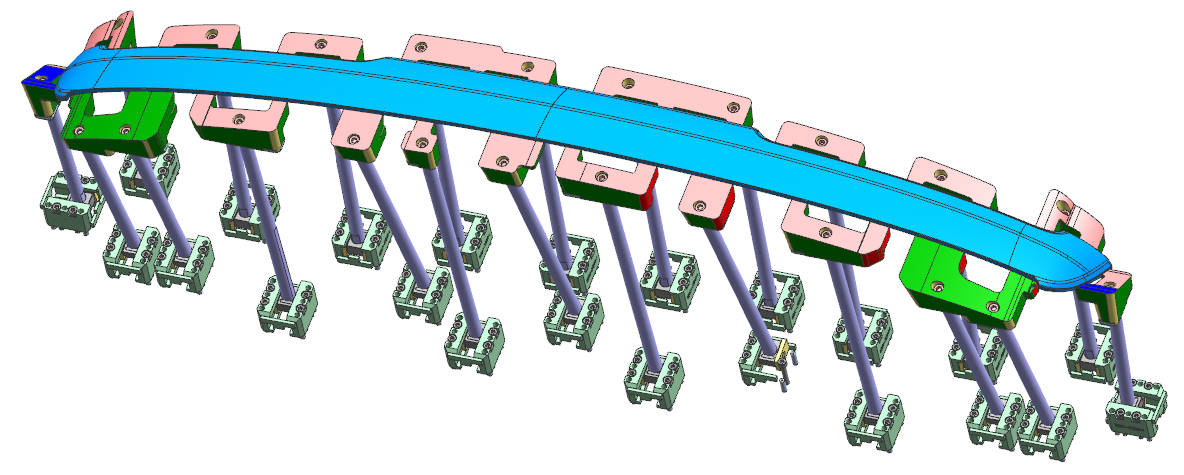

Release sequence — lifters and slides first, ejection after, to protect the part’s final state.
System-level view
End-gap behavior never comes from a single setting or one local feature. It emerges from the combined effect of filling balance, cooling behavior, perimeter clip constraints, and controlled release during ejection. Aligning these early reduces long-term tuning and uncertainty.
