Injection Mold Texturing for Automotive Parts: Draft, VDI, MT

In automotive injection molding, surface texture is often treated like a styling choice. In real programs, it behaves more like a    quality gate. Once texture is applied, it locks in how a part reflects light, how it releases from the tool, and how it will be judged during appearance approval.

This article focuses on engineering reality—reference systems (VDI/SPI/MT), draft versus depth rules, typical failure modes, and the industry structure that leads OEMs to specify approved texture suppliers.    For broader context on the molding process itself, see our overview of    injection molding.

What injection mold texture controls

Texture is not only “pattern.” It controls light behavior, tactile perception, and defect visibility. It also increases release resistance, which means mold geometry decisions become less forgiving.

• Light reflection: glare reduction, highlight softening, surface uniformity.

• Defect perception: masking of flow lines, weld lines, minor sinks.

• Release behavior: higher friction, higher scuff risk, tighter draft requirements.

• Cross-tool consistency: the same part must look identical across cavities, tools, and plants.

Origin of mold texture in automotive plastics

As plastics replaced leather, coated metals, and painted surfaces, polished parts exposed their weaknesses—glare, harsh highlights, and visible flow artifacts. Controlled surface irregularity appeared first as a practical fix, then became an OEM expectation.    Automotive interiors accelerated this evolution: texture moved from craft to requirement because appearance and touch are evaluated across large assemblies, not single parts.

VDI 3400 versus SPI versus MT reference

These systems control different variables. Confusing them is one of the fastest ways to create misalignment between design intent and tooling reality.

• VDI 3400: roughness-grade logic (how “rough” a surface is), often linked to Ra values.

• SPI: finish categories tied to method (polish / stone / blast), common in North America.

• MT pattern libraries: defined, repeatable geometries tied to physical masters and controlled depth—widely used for automotive appearance control.

If you are freezing appearance requirements early, this connects directly to    mold design    decisions—especially draft, shutoff strategy, and boundary management.

Draft angle rule for textured surfaces

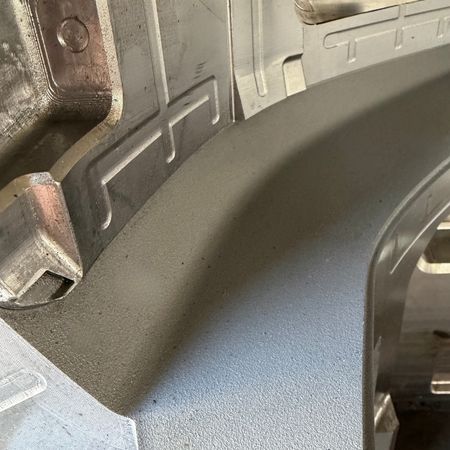

The most important variable in textured molds is draft angle, not pattern selection. As texture depth increases, release resistance rises sharply. If draft is insufficient, failure is not subtle—texture shears, whitening appears, gloss increases locally, and ejection becomes unstable.

Draft versus depth must be resolved before steel is cut. After machining, polishing or process tuning cannot fix a geometry mismatch. This is one reason experienced teams treat texture as a risk multiplier during    mold manufacturing.

Product design checkpoints for texture feasibility

Many texture problems are created upstream. If surfaces are frozen for appearance only, the mold inherits constraints that cannot be engineered away.

• Surface orientation relative to draw direction.

• Edge continuity across parting lines, joints, and insert boundaries.

• Feature density and micro-geometry that can distort texture or trap air.

• Material choice and shrink behavior that affect texture reproduction.

In automotive assemblies, texture also interacts with split lines and neighboring parts. This matters for interior and exterior trim molds, where cross-part harmony is judged visually. See our related capability scope for    automotive interior exterior trim mold.

Common texture failure modes in automotive programs

Most disputes labeled “texture issues” originate elsewhere in the system. Texture simply reveals the instability.

• Washout: often driven by flow imbalance plus insufficient venting.

• Scuffing: commonly traced to draft limitation and ejection friction.

• Gloss drift: linked to cooling imbalance and pressure history.

• Repair mismatch: local correction rarely blends seamlessly after texturing.

Why OEMs specify approved texture suppliers

OEMs specify approved suppliers because appearance must stay stable across tools, plants, and time. Specifications alone cannot prevent drift. Approved suppliers typically control physical masters (master plaques), pattern libraries, and traceable processes that make global repeatability achievable.

In lighting-related components, texture control becomes even more sensitive near optical boundaries and high-contrast illumination. If your project involves lamp tooling, you may also want to review our scope for    auto lamp mold.

Practical checklist before freezing texture

• Draft supports the selected depth and pattern geometry.

• The reference system is explicit (VDI / SPI / MT) with a physical approval basis.

• Boundary transitions are controlled across parting lines, inserts, and joints.

• Replication across tools and plants is planned, not assumed.

• Repair strategy is understood—or consciously rejected before mass production.

If you need help clarifying feasibility, draft constraints, or appearance risk at RFQ stage, our FAQ may help set expectations early:    FAQ.

Note: Multi-material parts can introduce additional texture risks at boundaries. For reference on tooling complexity topics such as multi-shot strategies, see    two-shot mold.    Early validation via samples can reduce late-stage surprises—often supported by    rapid prototyping.
