Front Grille Mold
Guangdian Technology
Front grille parts are long, open, and rib-dense. In molding, this combination rarely creates a single problem. It multiplies them.
Flow balance, weld line behavior, deformation, and ejection stability are tightly connected. Once one becomes unstable, the rest usually follow.
For this type of component, appearance quality and assembly fit are not decided on the machine. They are decided earlier — during mold design, before steel is cut.
Related capability pages: auto lamp mold , mold design , mold manufacturing , injection molding .

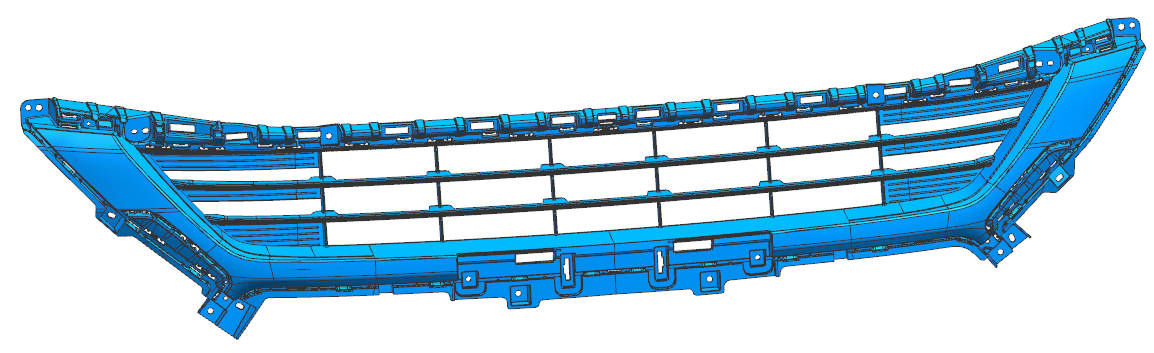

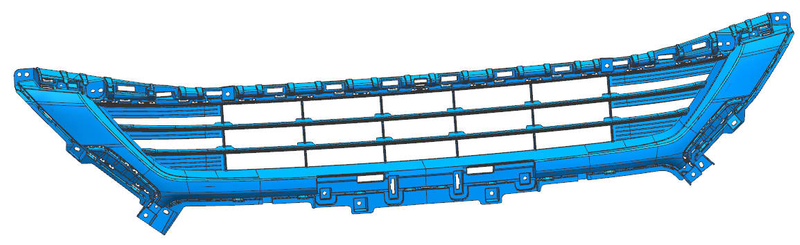

Front grille geometry pushes several limits at the same time.
The flow length is long. Open windows interrupt melt fronts repeatedly. Rib structures concentrate stiffness and stress in local areas. Assembly points leave little tolerance for post-ejection distortion.
These factors do not act independently. They interact.
When filling becomes uneven, weld lines appear where they should not. When cooling loses balance, deformation follows. And once the part deforms, ejection becomes unpredictable.
This is the reality of grille molds.

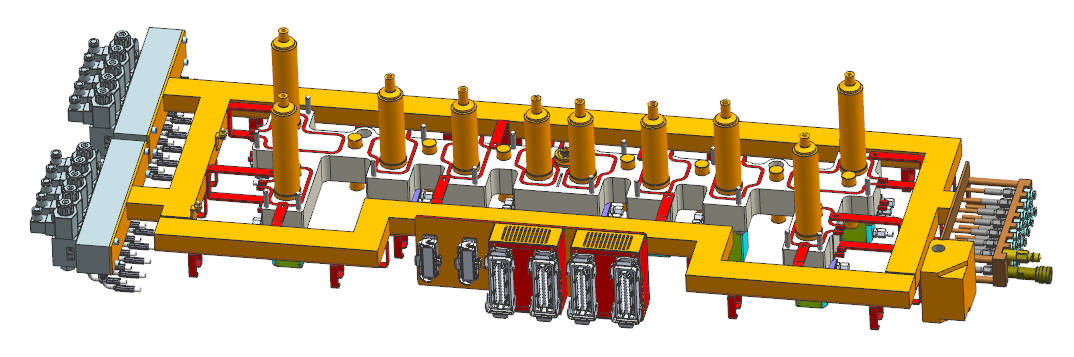

This mold uses a multi-point sequential valve hot runner system.
Not for speed. Not for specification.
It is used to control how melt fronts meet across the grille structure.
When all gates open simultaneously, flow fronts collide without order. Weld lines stack. Internal stress accumulates unevenly, especially around window edges and rib intersections.
Valve timing is therefore designed to introduce flow in sequence. Interaction happens progressively, not all at once.
This logic is defined during mold design. If valve timing becomes something to “adjust later,” the problem usually started much earlier.
For long grille parts, cooling imbalance rarely shows up immediately. It shows up after ejection.

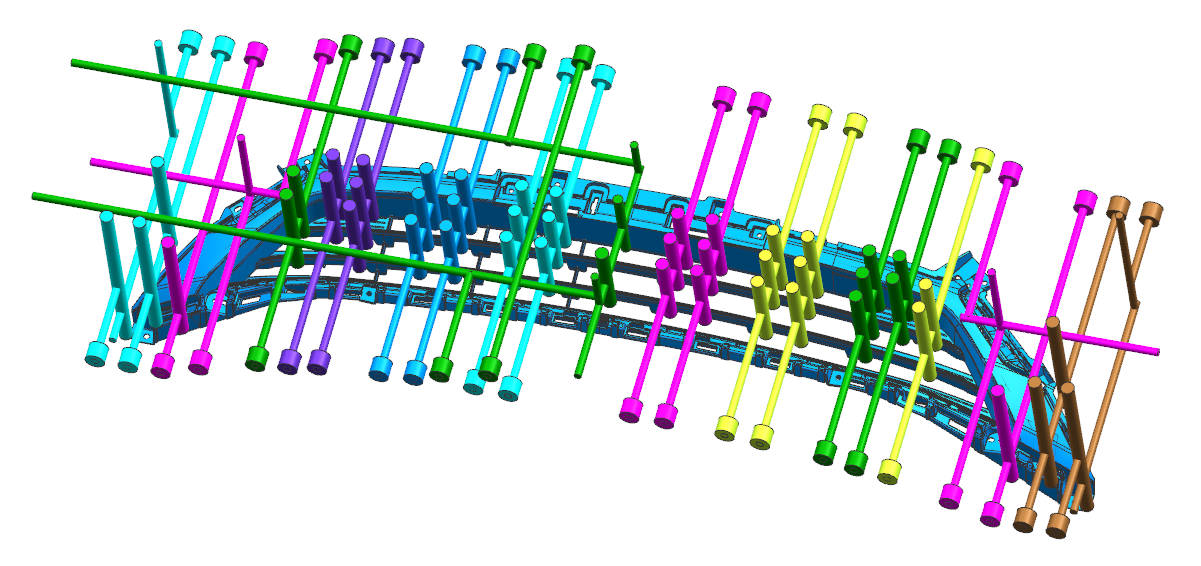

In this mold, cooling is arranged according to structural density, not cavity outline.
Rib-concentrated zones receive targeted thermal control. Heat is removed where stiffness locks in stress, not where space is simply available.
Cooling decisions are made together with filling behavior, not separately. The goal is not a shorter cycle. The goal is a stable shape after release.
Grille openings introduce air traps that are easy to underestimate.
Each window group behaves differently during filling. If air has nowhere to go, surface defects appear quickly.
Venting paths in this mold are distributed according to window layout and flow direction. Vents are placed where air naturally accumulates, not where they are easiest to machine.
Depth is controlled carefully. Enough to release air. Not enough to invite flash. These decisions are fixed early, before trial work begins.
Ejection is often where grille parts fail.
The structure is long and sensitive to release direction. Any forced movement shows immediately — as stress marks, deformation, or surface damage.

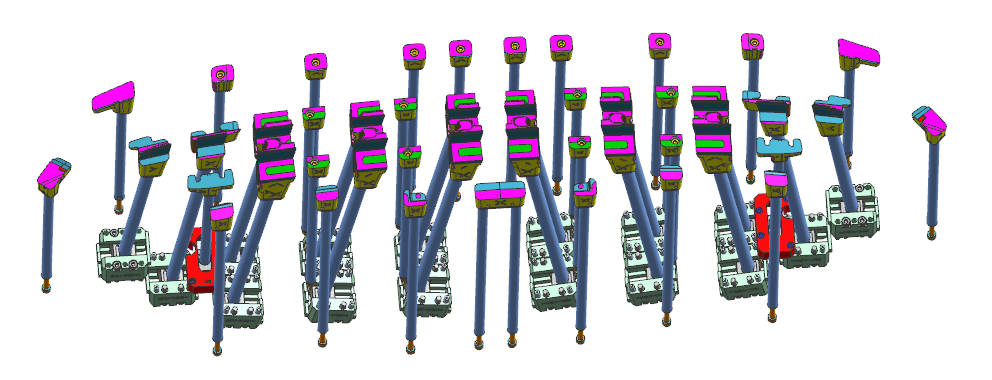

In this mold, release paths are analyzed and decomposed during design.
Lifters are applied where direction must be guided. Ejection force is spread, not concentrated.
Straight ejectors are used on runner areas. Their role is simple: keep the overall ejection rhythm stable and repeatable.
This separation is intentional. Mixing functions usually leads to interference and later adjustment.
Most grille mold problems do not originate from machining. They originate from unresolved decisions.
Flow order is stabilized through sequential valve control
Deformation is managed through coordinated cooling design
Part release is controlled through guided ejection paths
These decisions are completed before steel cutting begins, not corrected afterward.
Front grille molds do not reward improvisation.

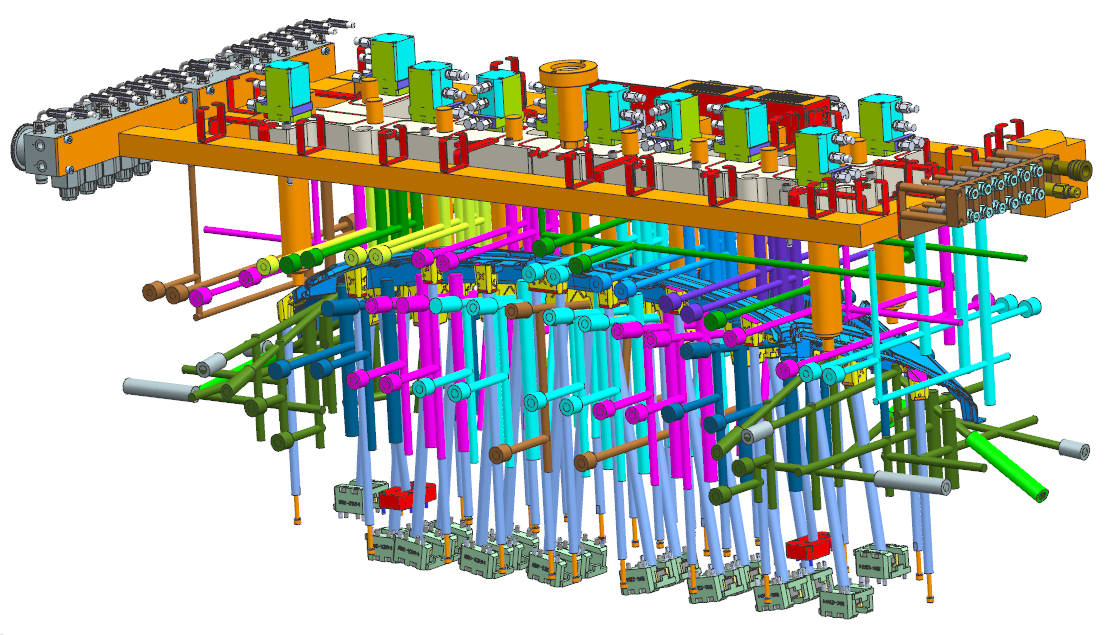

Stable appearance and assembly performance come from disciplined decisions made upstream — where flow, heat, and release are considered as one system.
This page documents that approach. Not as a specification list, but as a record of judgment.
